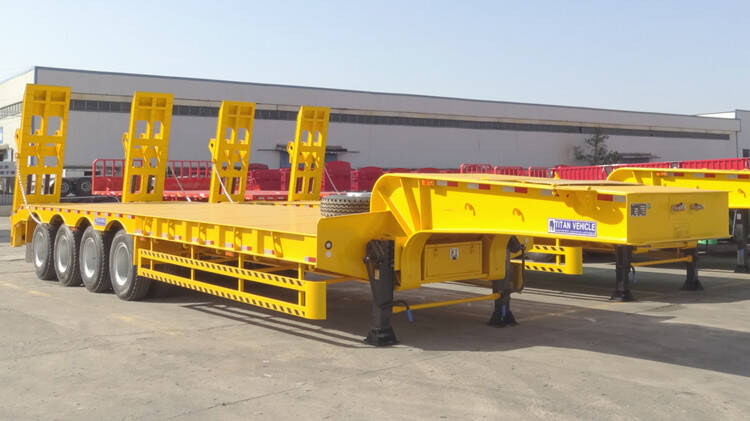

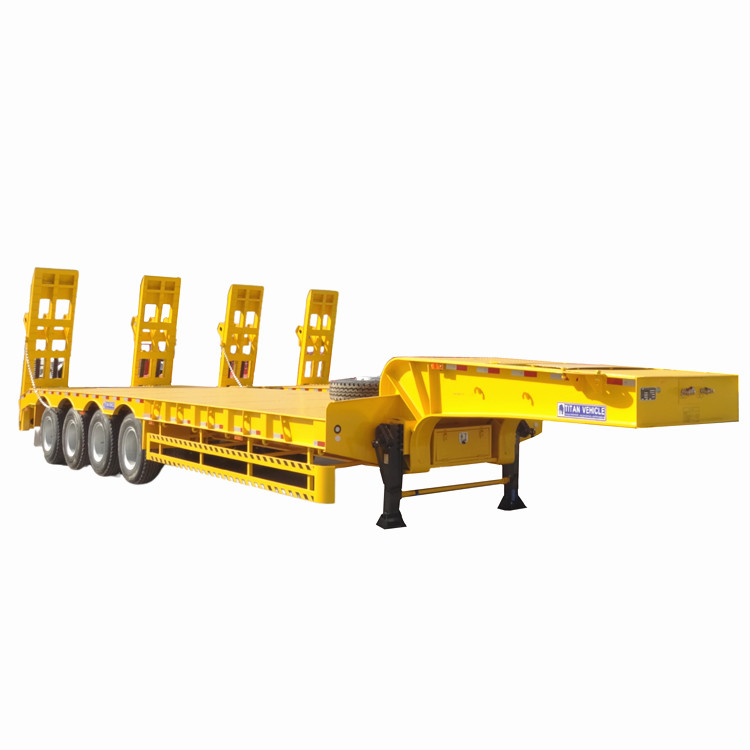

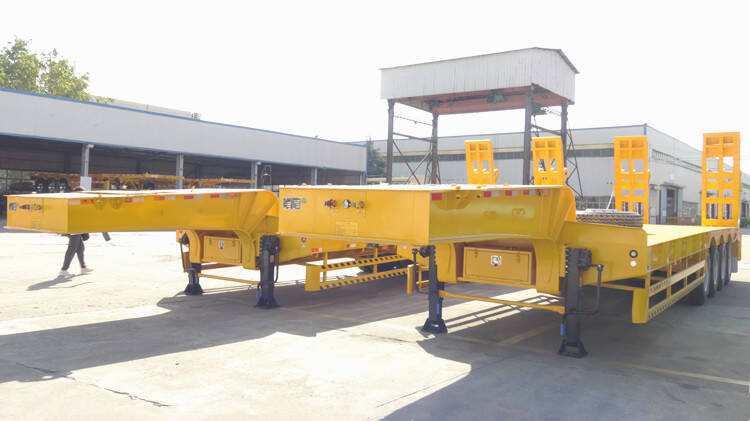

4 axle 100 ton lowbed for sale use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload.
A semi lowbed trailer has a platform and ramp, the cargo plate is a flatbed. The entire cargo platform is straight and above the wheels. The 4 axle lowbed trailer for sale is used to transport normal heavy cargo.
4 Axle 100 Ton Semi Lowbed Trailer for Sale in Nigeria Port Harcourt
4 Axle 100 Ton Semi Lowbed Trailer for Sale in Nigeria Port Harcourt
4 Axle 100 Ton Semi Lowbed Trailer for Sale in Nigeria Port Harcourt

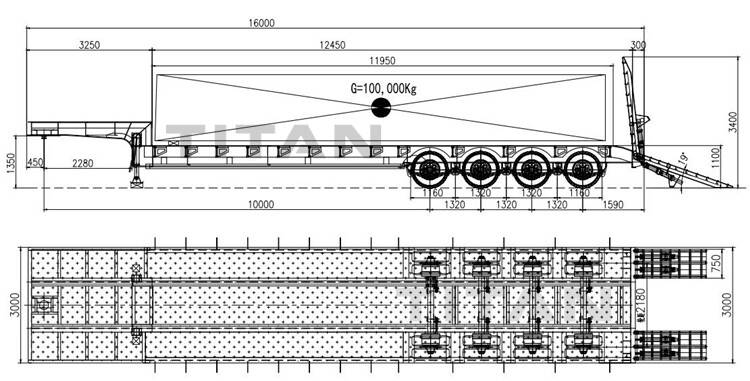

Overall dimension: 16000mm * 3000mm *3400mm
Loading capacity(T): 100T
Axle: 4 axles, 13T/16T, FUWA / BPW
Tire: 16 units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: hydraulic type
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)

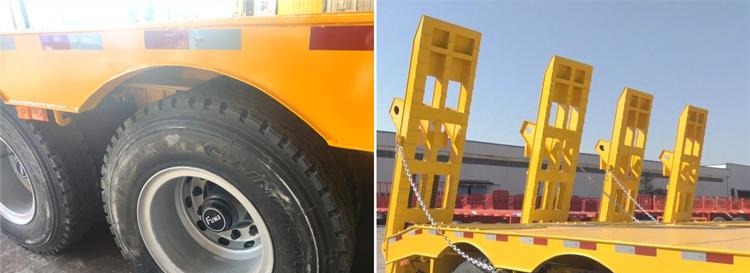

1. Main beam adopts HG high strength steel, with high loading capacity.
2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.
3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
4. polyurethane paint, with long service lift, and avoid the vehicle get rust.
5. World famous brand spare part, ensure high quality and save costs.

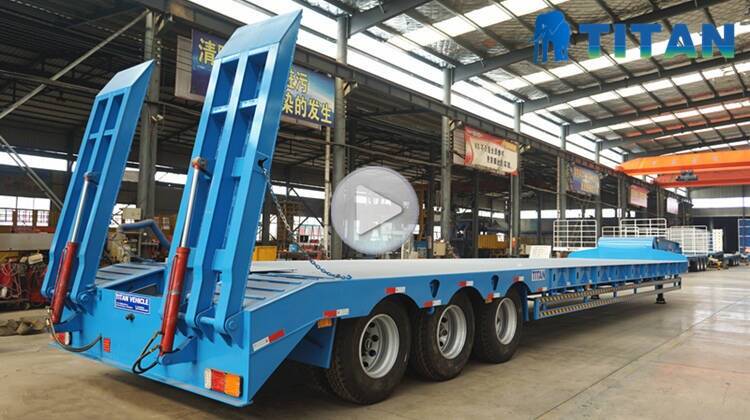

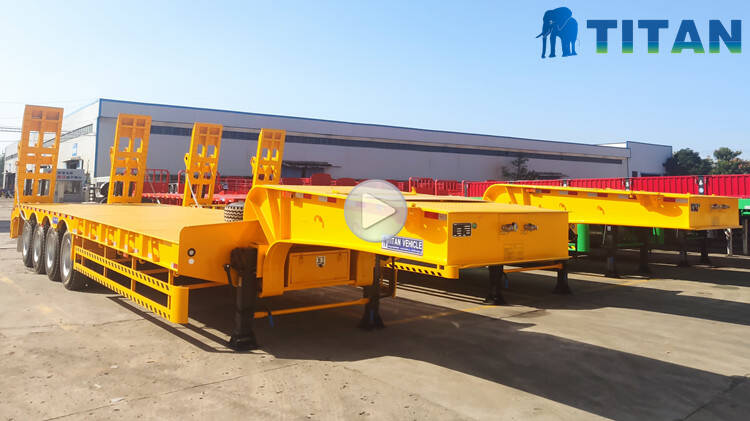

4 Axle 100 Ton Lowbed Semi Trailer details display video
Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
