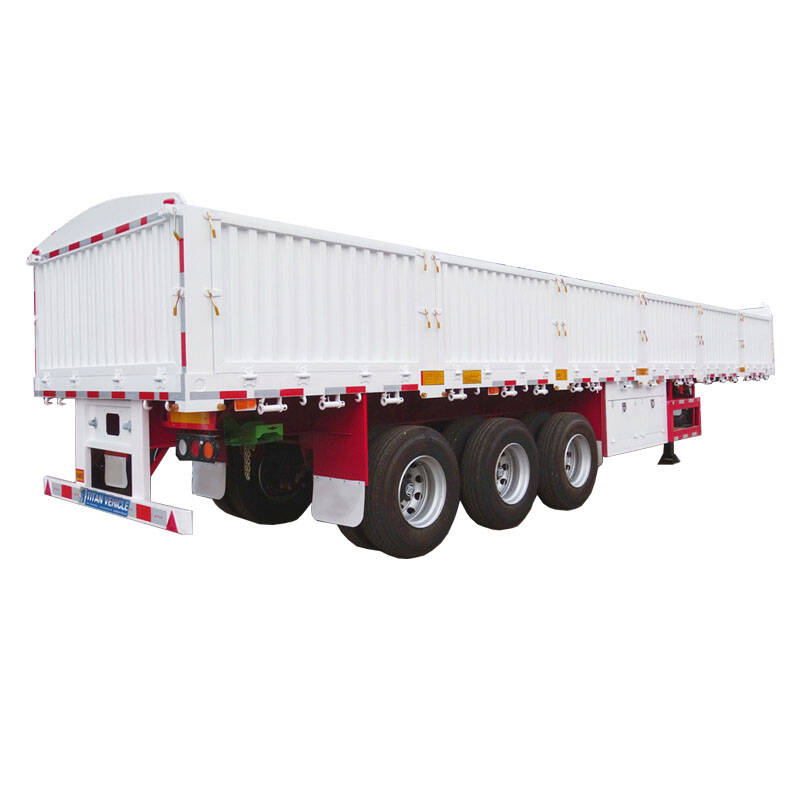

3 Axle Sidewall Trailer

Sidewall Trailer for Sale Description：

Sidewall trailer for sale was popular by logistics companies as its multipurpose application.It use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.

The 3 axle sidewall trailer price can be use to load the containers after adopt the contianer locks for it.

3 Axle Sidewall Trailer Price for Sale in Nigeria Aba

3 Axle Sidewall Trailer Price for Sale in Nigeria Aba

3 Axle Sidewall Trailer Price for Sale in Nigeria Aba

Specification of Sidewall Trailer Price:

Dimension(mm): 12500x2500x2350mm

Trailer Sides: 800mm sidewall

Loading capacity(ton): ≤50T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

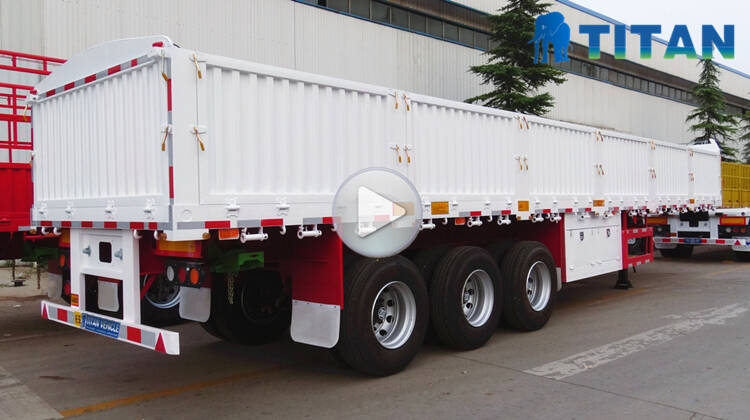

Through this video, you can learn about different types of sidewall semi trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry!

We will provide more details, price, catalog, drawing, videos for you!
