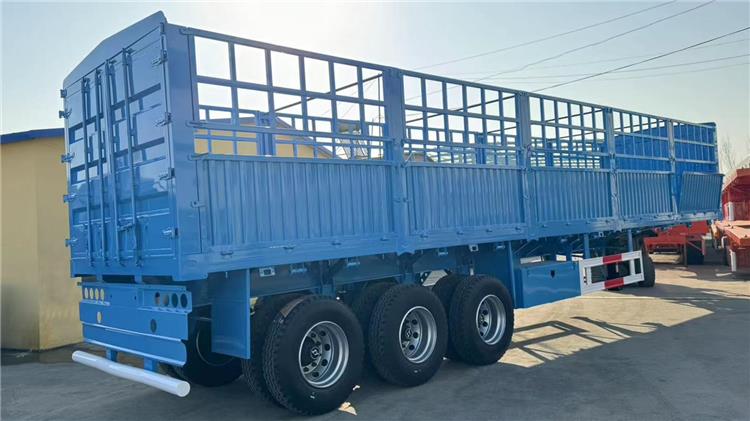

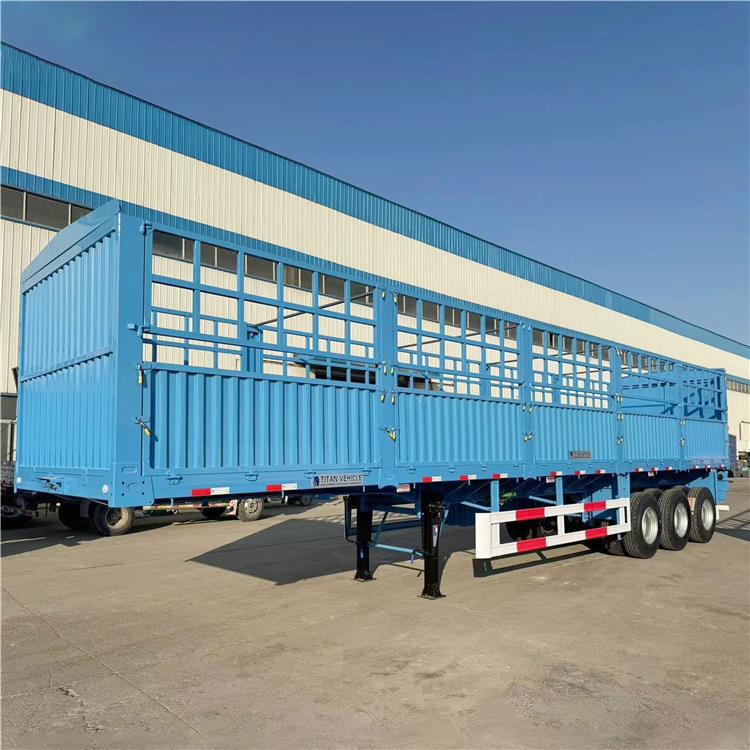

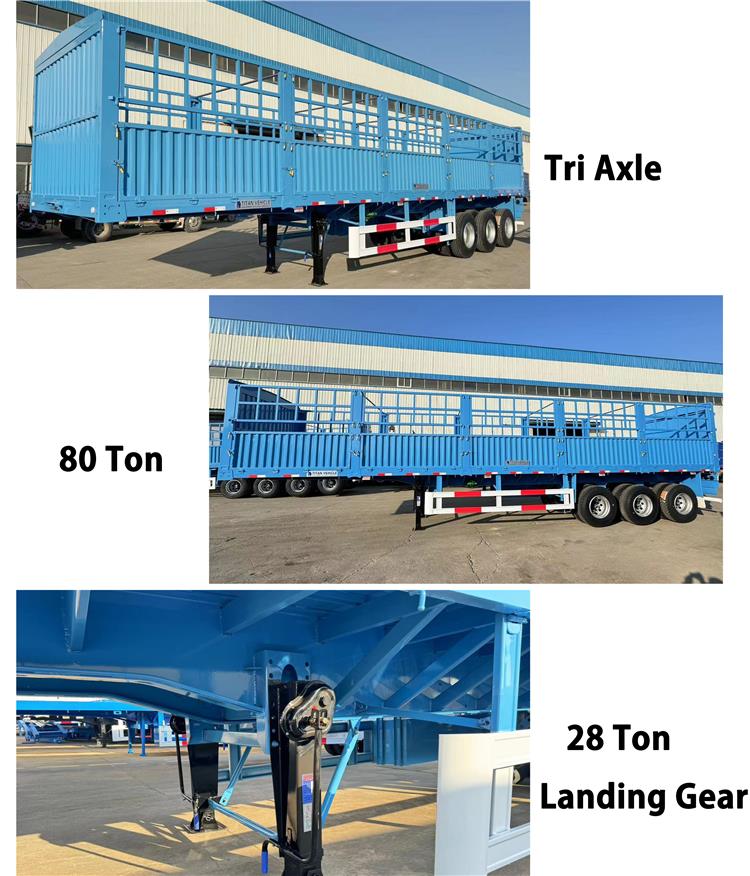

3 Axle Fence Semi Trailer

3 Axle 80 Ton Fence Semi Trailer Price: 15300 USD

3 axle 80 ton fence semi trailer has strong applicability and can transport various types of goods, including steel, wood, stone and other construction materials, as well as vegetables, fruits, agricultural and sideline products, home appliances, express parcels and other daily goods. For some irregular shapes, large sizes or super wide and super high goods, 3 axle 80 ton fence semi trailer can also adapt well, and can load almost all goods within the tolerance range.

The 3 axle 80 ton fence semi trailer compartment is open, without the space limitation of the closed compartment, which is more convenient and quick to load and unload goods, especially for some large goods, which can be directly loaded and unloaded with lifting equipment, saving loading and unloading time and labor costs.

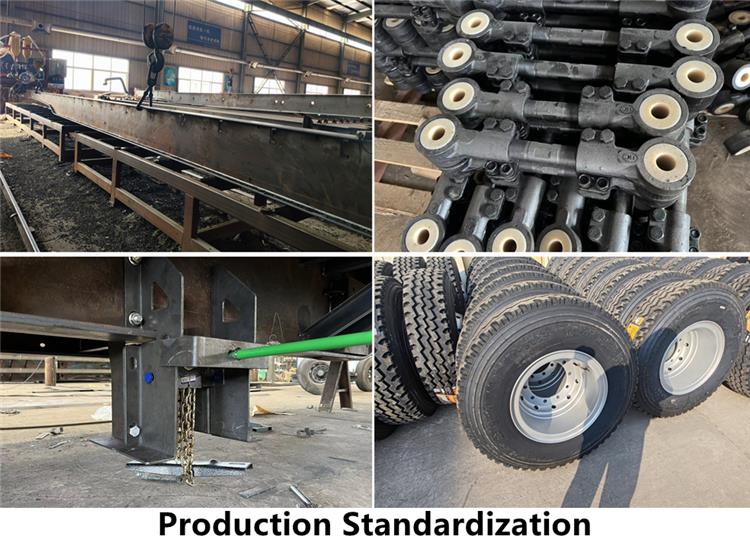

The frame of 3 axle 80 ton fence semi trailer is usually made of high-strength steel, and the longitudinal beam is mostly a through-beam structure. Through advanced processes such as automatic buried welding, the frame has high strength and rigidity, and can withstand large cargo weight and various stresses during transportation.

3 axle 80 ton fence semi trailer adopts non-independent steel plate stamping rigid suspension, which has strong rigidity and strength, can effectively support the load, reduce the impact of goods on the vehicle during transportation, and ensure the driving stability and safety of 3 axle 80 ton fence semi trailer. At the same time, the reasonably designed system tie rod angle can reduce the friction and sliding between the tire and the ground, and reduce tire wear.

3 Axle 80 Ton Fence Semi Trailer Price for Sale Near Me In Nigeria

3 Axle 80 Ton Fence Semi Trailer Price for Sale Near Me In Nigeria

3 Axle 80 Ton Fence Semi Trailer Price for Sale Near Me In Nigeria

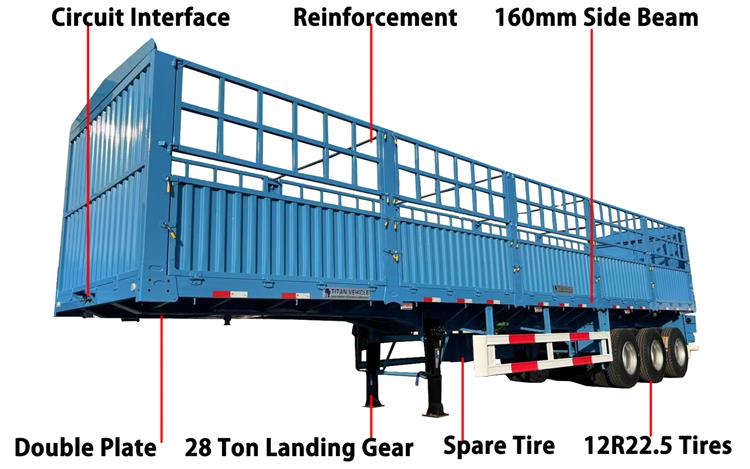

Specification of Fence Semi Trailer

Dimension：12500mm * 2500mm *1800mm

Loading capacity: 80 ton

Axles：3 axles

Sidewalls height: 800mm, 800mm

Suspension：Heavy duty mechanical spring suspension

Tire：12 units

Suspension: Mechanical suspension

King Pin: JOST brand

Landing Gear: TITAN brand 28tons

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 160mmsteel channel

Bottom Platform: 3mm-thick checkered plate

Twist Locks: 4,8,12 sets

Valve: WABCO valve

Light: LED light

Advantage of Fence Semi Trailer

The 3 axle 80 ton fence semi trailer has a large compartment space, which can meet the transportation needs of large quantities of goods, increase the amount of goods transported in a single trip, reduce the number of trips, and thus improve transportation efficiency.

Due to the convenience of loading and unloading, the goods can be quickly loaded and unloaded on the 3 axle 80 ton fence semi trailer, which reduces the vehicle's stay time in the loading and unloading links, speeds up the vehicle's turnover speed, and further improves transportation efficiency.

The appearance of the 3 axle 80 ton fence semi trailer can be neat and beautiful, giving people a professional and reliable feeling, and enhancing the image of the transportation company.

It can be customized according to the special needs of users, such as the height, number, spacing, etc. of the fence of the 3 axle 80 ton fence semi trailer can be adjusted according to different goods to meet the diverse transportation needs of users.

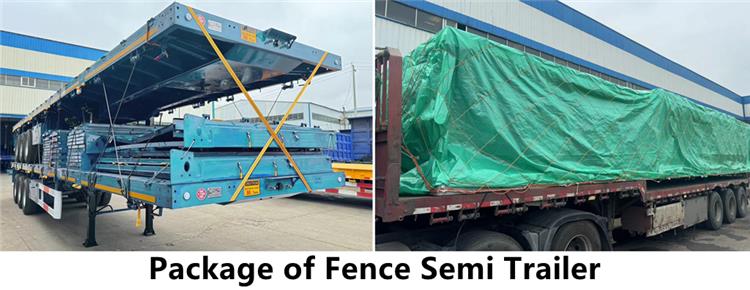

Package of Fence Semi Trailer

Using tarpaulins to wrap 3 axle 80 ton fence semi trailer for sea freight shipment is an important step to ensure the safety of the goods. Make sure to use high-quality tarpaulins that are waterproof and tear-resistant, which can effectively resist seawater and humid environments. Before packaging, clean the surface of the semi-trailer to remove dirt, oil stains, etc., and spray wax to avoid damage to the tarpaulin during transportation.

Cover the entire 3 axle 80 ton fence semi trailer with tarpaulins, ensuring that the tarpaulin completely covers all exposed parts. Use ropes or cable ties to fix the tarpaulin to the body to ensure that the tarpaulin does not shift during transportation.
