Nigeria Sinotruk Local Sales Center 2025 Howo New Model

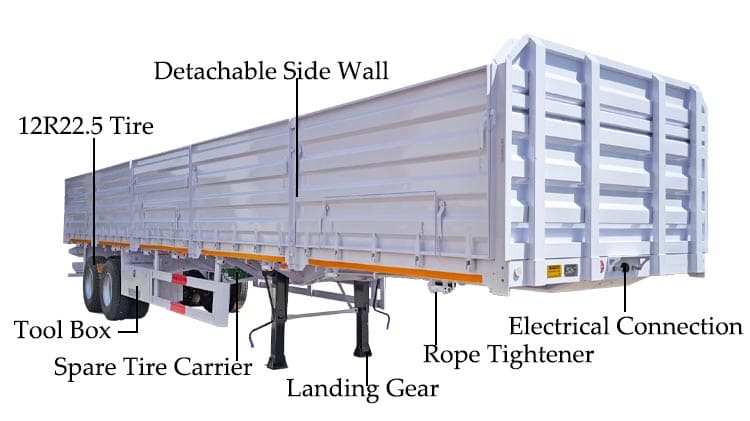

One of the key features of the drop side trailer for sale is its removable side panels. The modular design allows for convenient adjustment depending on the type of cargo being loaded or unloaded. Both the side and rear panels can be opened, which reduces manual effort and speeds up the loading process, particularly when handling bulky or non-standard goods.
Dimension: 12500mm*2500mm*3200mm
Loading Capacity: 50 ton
Floor Plate: thickened pattern plate
Axles: 2 axles, 13 ton, TITAN brand
Leaf Spring: 10 layers
Suspension: mechanical suspension
Tire: 12R22.5, 8 units
Bumper: thickened bumper
Landing Gear: 28 ton
Lamp: LED lamp

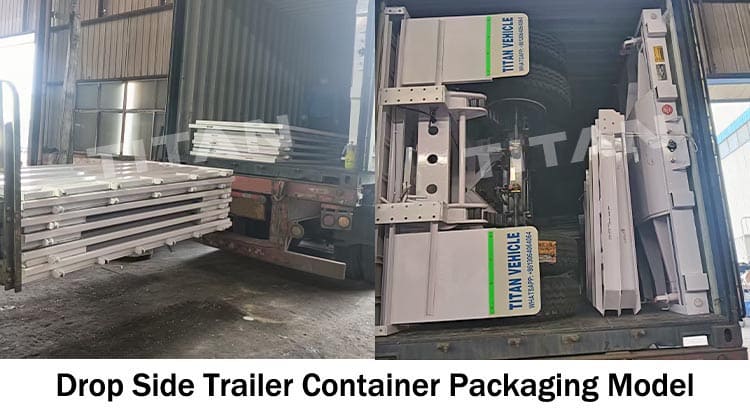

When comes to transportation and delivery, the drop side trailer for sale can be shipped in containers or using roll-on/roll-off (RORO) vessels, offering logistics flexibility. Before shipment, each flatbed dropside trailer is treated with a protective wax layer and wrapped with waterproof tarps. The dual-layer safeguard shields the drop side trailer from salt, moisture, and corrosion during sea transport which is a standard TITAN practice that enhances long term durability and distinguishes the service quality from other manufacturers in the market.
In terms of visual appearance, the flatbed dropside adopts a clean white color scheme designed to improve visibility in all weather conditions. The external surface is treated with powder coating and baking technology, which creates a uniform and durable finish. Compared to traditional spray painting, the method ensures stronger adhesion between the paint and metal surface. As a result, the coating is more resistant to peeling and fading over time, extending the drop side trailer for sale visual appeal and protective function in long term use.
For the drop side trailer for sale flooring, TITAN focuses on functionality and safety rather than minimizing cost. Instead of using smooth plates that are more prone to slipping, the manufacturer employs thickened patterned steel plates with anti-slip properties which improves grip between the drop side trailer and the cargo, reducing the risk of movement during transit, and also adds to the strength and service life of the floor, helping to maintain structural integrity even under heavy loads.

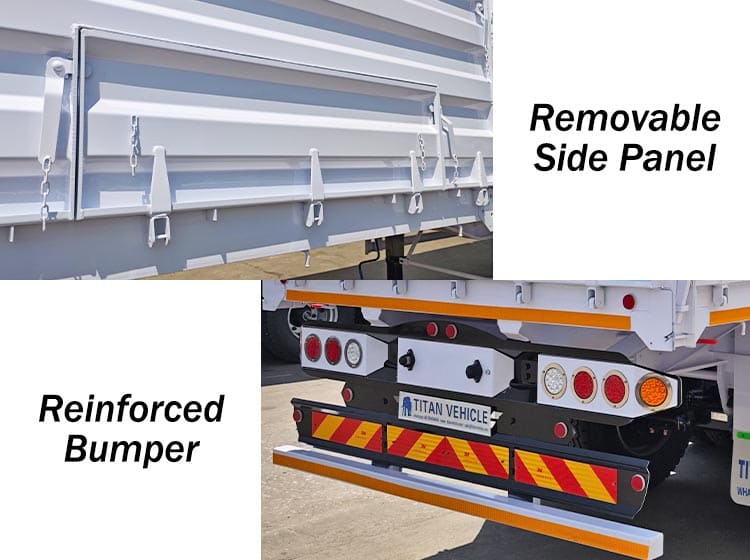

Unlike enclosed trailers, the drop side trailer offers a more flexible design. The detachable side walls can be removed when required, making easier to transport larger or bulkier items. Removing the side panels also reduces the flatbed dropside weight, which increases its loading capacity and expands the range of cargo can handle.
A critical component of the drop side trailer for sale structure is the 13 ton heavy duty axle. The axle offers improved strength and better resistance against wear, especially on gravel roads or in Nigeria with wide temperature shifts. The flatbed dropside is engineered to withstand continuous impacts and prevent premature fatigue or failure, offering a reliable transport solution in rugged conditions.

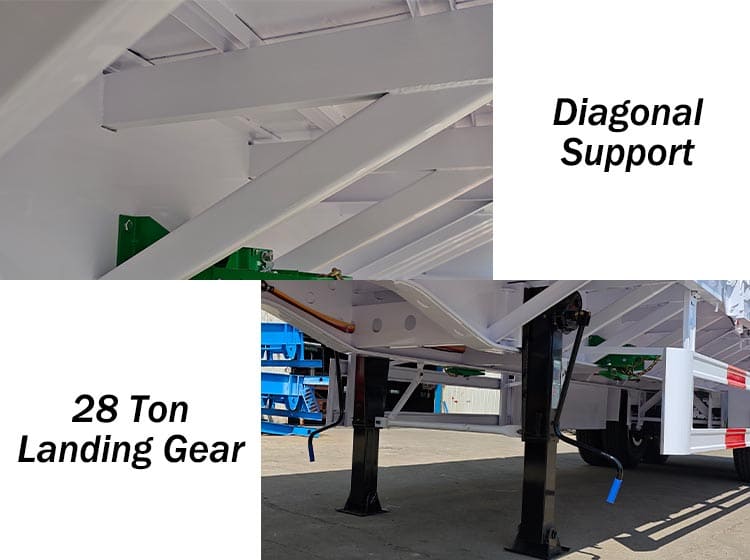

Another essential system is the landing gear, which is responsible for supporting the drop side trailer during loading and unloading. With a maximum static load capacity of 28 tons, the gear is built for demanding cargo operations. Its design prioritizes ease of use, allowing Nigeria operators to adjust or deploy quickly, even without extensive training. The wide landing foot improves contact with the ground, enhancing trailer stability on uneven or soft surfaces.

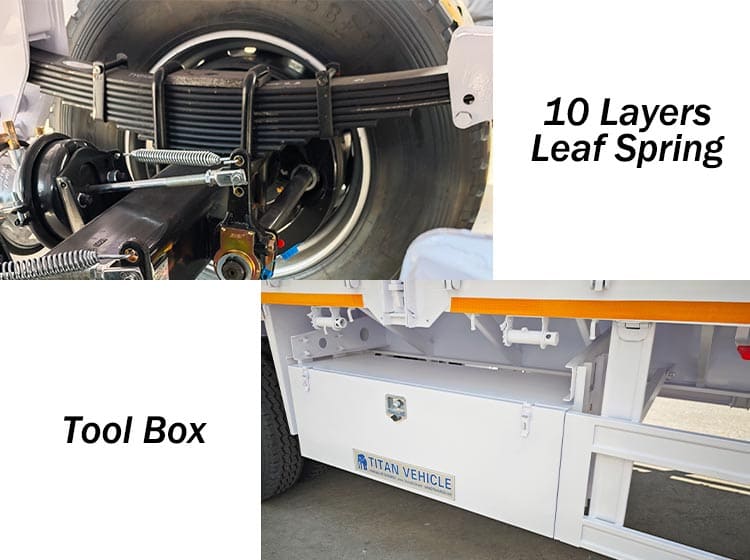

For suspension, the flatbed dropside trailer uses a reinforced mechanical system designed to deliver both durability and comfort. The leaf spring setup distributes weight evenly and absorbs shocks caused by potholes or rough roads. The materials used—high-strength steel—offer exceptional resistance to impact and heat, allowing the drop side trailer for sale to function reliably even in challenging environments such as remote or rural areas of Nigeria.
Safety is further supported by the braking system, which is equipped with high capacity 16 ton brake pads. These brake pads enhance stopping performance, particularly under emergency conditions or when carrying a full load which can help reduce the risk of tire locking, which in turn extends tire life and ensures better control of the drop side trailer. The air brake system uses high pressure rubber hoses known for the long service life and resistance to wear, minimizing the need for frequent replacements.
