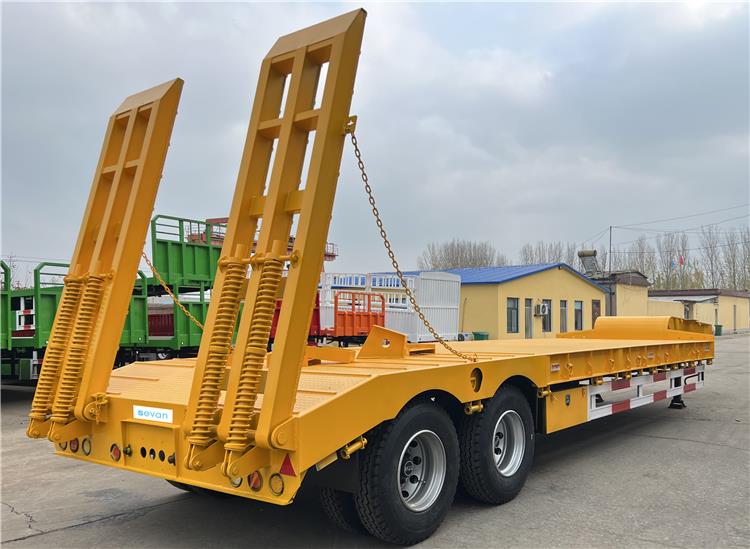

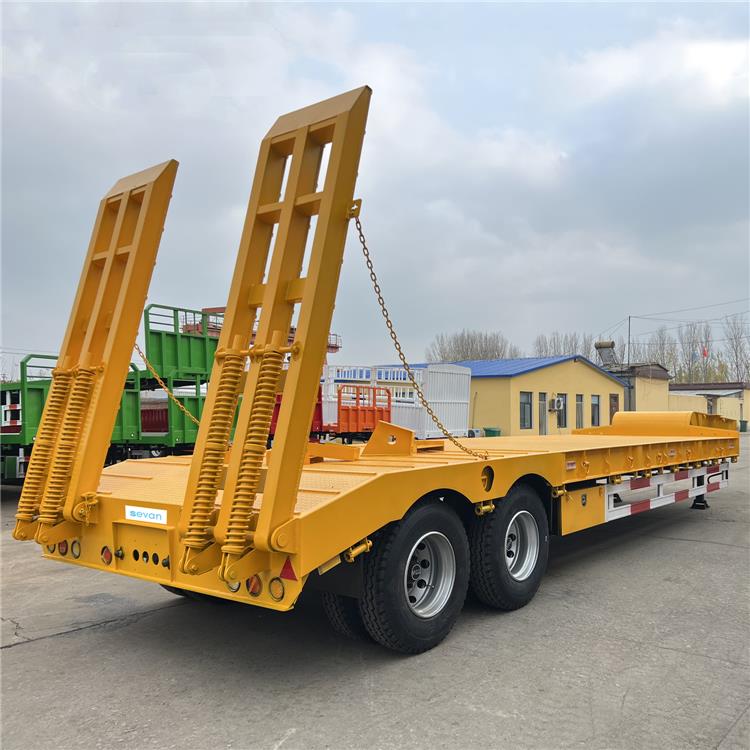

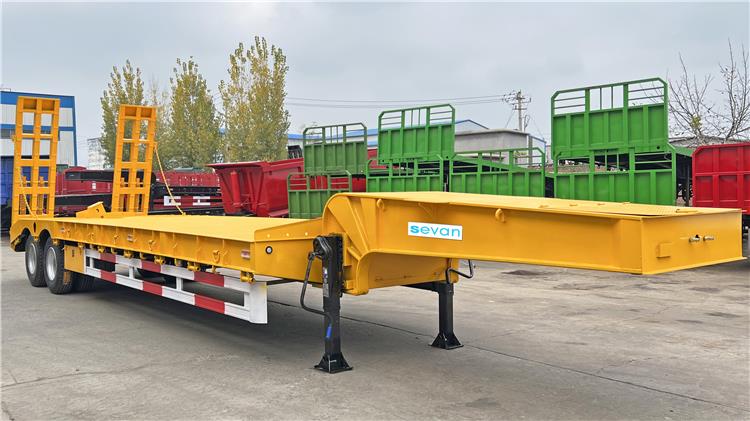

2 Axle 60 Ton Lowbed Trailer

2 Axle 60 Ton Lowbed Trailer Price: 13000 USD

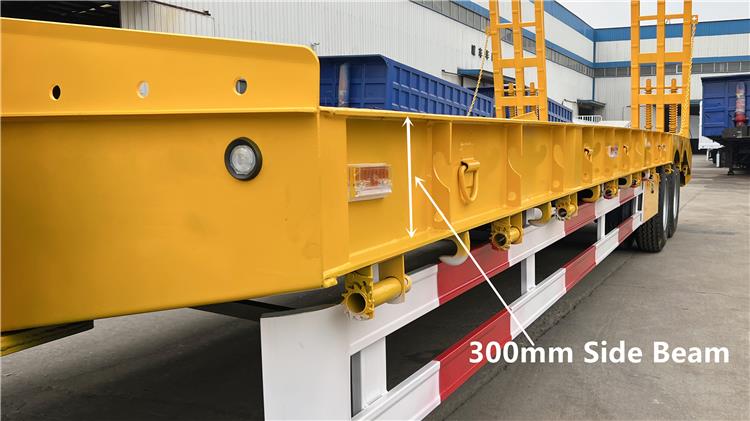

Sevan construction nigeria limited lowbed trailer side beams are all welded with three-in-one high-strength strip steel, with a strip width of 140mm and a side beam height of 300mm

Sevan construction nigeria limited lowbed trailer uses G-type scales for higher strength, and the beams are reinforced with vertical plates at the trapezoidal scale welding to prevent the vertical plates from being deformed due to downward pressure on both sides.

Sevan construction nigeria limited lowbed trailer uses three-in-one high-strength scales, I-shaped, which are more solid and have stronger bearing capacity. Prevent the side beams from being pressed down and causing the beams to deform left and right.

Sevan construction nigeria limited lowbed trailer gooseneck adopts a downward pressure forehead to prevent heavy loads from tilting. It is conducive to the front of the car climbing.

2 Axle 60 Ton Lowbed Trailer - Sevan Construction Nigeria Limited

2 Axle 60 Ton Lowbed Trailer - Sevan Construction Nigeria Limited

2 Axle 60 Ton Lowbed Trailer - Sevan Construction Nigeria Limited

2 Axle 60 Ton Lowbed Trailer - Sevan Construction Nigeria Limited

2 Axle 60 Ton Lowbed Trailer - Sevan Construction Nigeria Limited

2 Axle 60 Ton Lowbed Trailer - Sevan Construction Nigeria Limited

Specification of 2 Axle 60 Ton Lowbed Trailer

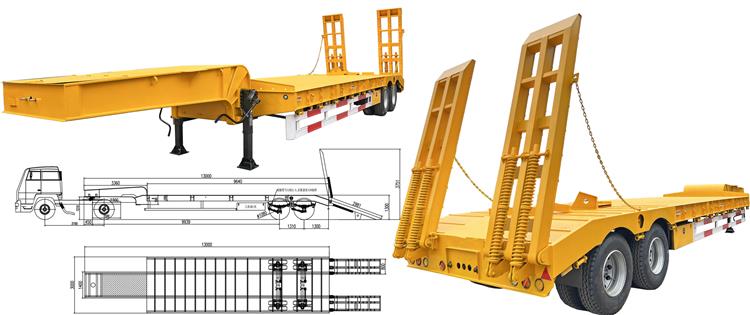

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 60T

Axle: 13T/16T, TITAN Brand

Rim: 8.0-20

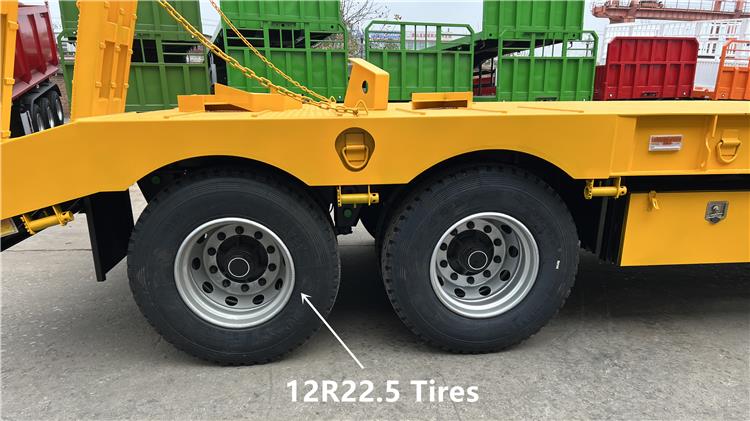

Tire: 12R22.5 Tires

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

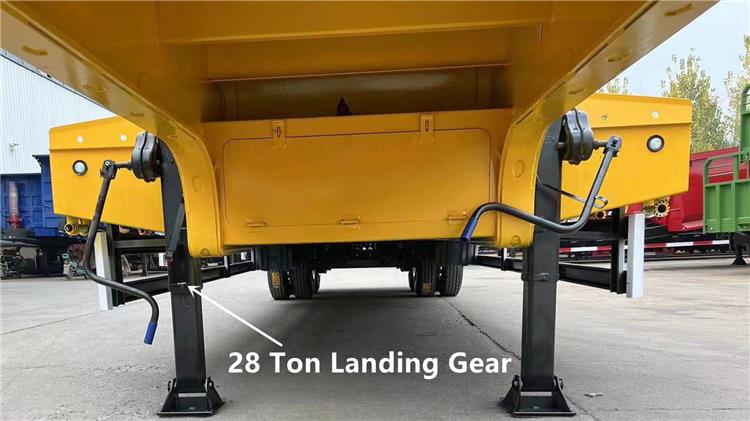

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

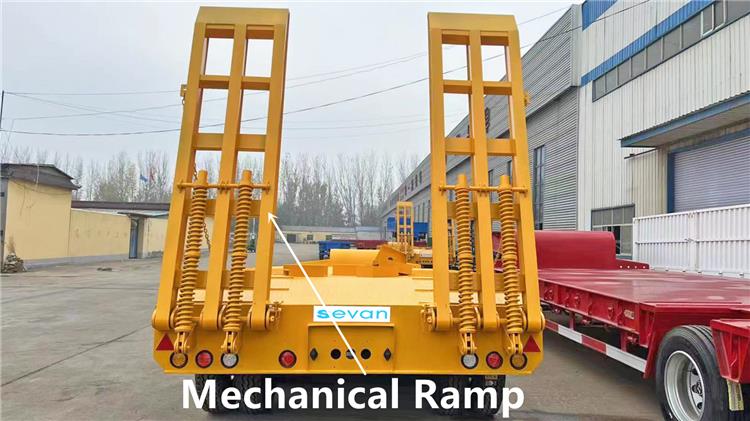

Ramp: Mechanical ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light

Advantage of Sevan Lowbed Trailer

Sevan construction nigeria limited lowbed trailer ladder adopts four-in-one high-strength plate, which is high in strength, durable and non-deformed. It adopts high-elastic double-spring ladder, which can be easily lifted by ordinary people with one hand, making it more convenient to operate.

Sevan construction nigeria limited lowbed trailer tire side beams are all designed with double-layer side beams, which are more beautiful and durable.

Sevan construction nigeria limited lowbed trailer has a tool box on the upper and lower forehead, which is particularly strong and can be used to place heavy tools such as jacks and chains.

Sevan construction nigeria limited lowbed trailer suspension is thickened to better adapt to poor road conditions.

Sevan construction nigeria limited lowbed trailer adopts one-piece cast adjustable pull rod to prevent breakage.

Sevan construction nigeria limited lowbed trailer all pins are all made of five-flowered nuts with clips to prevent falling off.

The Sevan construction nigeria limited lowbed trailer has foldable auxiliary outriggers at the rear, which can provide auxiliary support and stability when transporting large equipment such as excavators, preventing damage to the rear of the vehicle and accidents such as slipping of the transported equipment.
