Low bed trailer effectively link the main beam and the side beam into a whole. The bearing capacity and anti-bump ability are greatly increased, and the overall life of the frame is more than 10 years. sevan construction nigeria ltd lagos , low bed trailer , low bed semi trailer , low bed trailer for sale , lowbed trailer ,
4 Axle 100 ton low bed trailer uses the Q460C high strengthen steel to produce the trailer. The yield strength of Q460C steel is ≥620Mpa, more durable and stronger than ordinary steel, and its loading capacity is 5 times more than the low bed trailer which adopt Q345 steel. Sevan Construction Nigeria Ltd Lagos.
Sevan Construction Nigeria Ltd Lagos - 4 Axle 100 Ton Low Bed Trailer for Sale

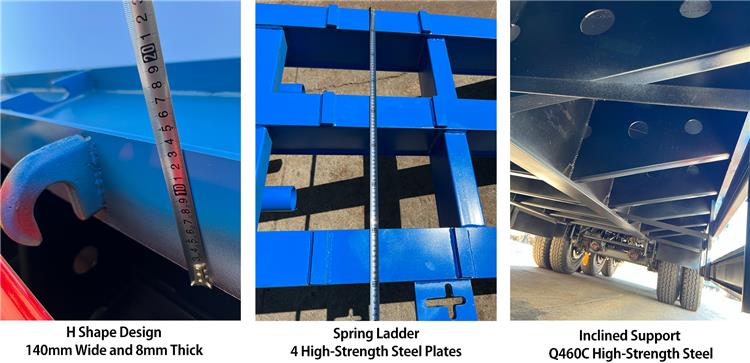

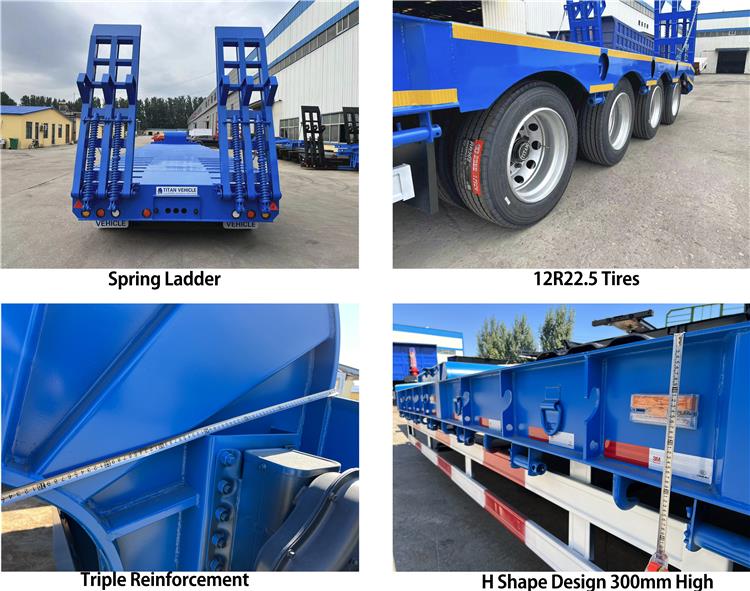

The low bed trailer side beam adopts an "H" shape design and is welded with T700 high-strength steel, which perfectly matches the frame. 4 Axle 100 ton low bed trailer adopts triple reinforcement,and it is reinforced by double boxes,which makes the lowbed trailer has more loading capacity. Sevan Construction Nigeria Ltd Lagos

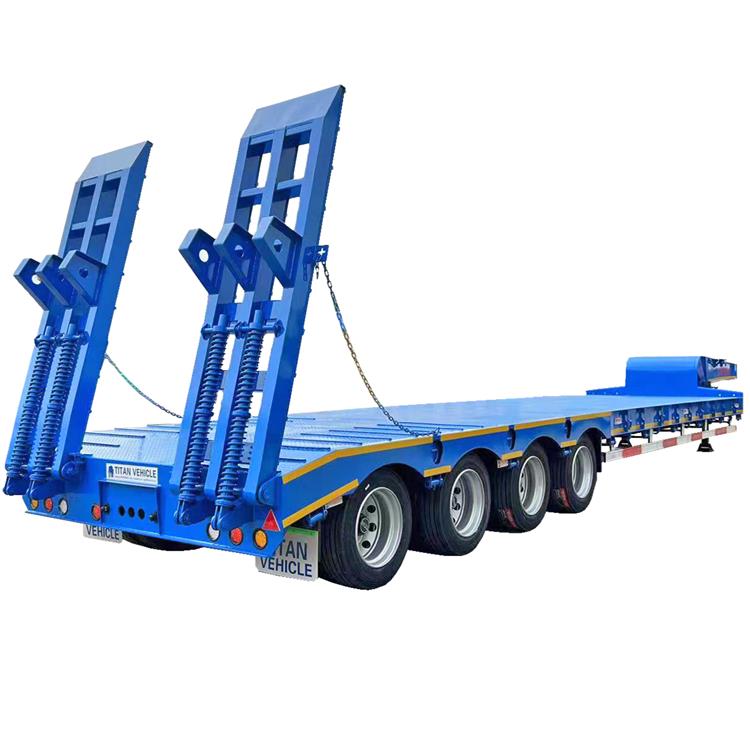

Low bed trailer ramp is welded by 4 high-strength steel plates, 4 axle 100 ton low bed trailer climbing ladder adopts a double spring design, which can be lifted and lowered by one person. The low bed trailer inclined support adopts Q460C high-strength steel. The thickness is 6mm, and the link in the middle of the beam is also made of high-strength steel with a thickness of 6mm. Sevan Construction Nigeria Ltd Lagos
Loading capacity: 100 ton

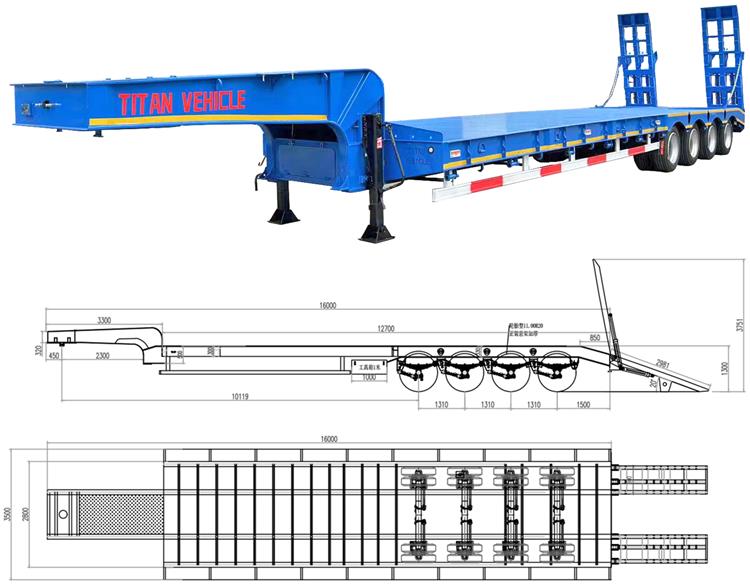

Overall dimension: 15800mm * 3000mm *3750mm
Axles: 4 axles
Suspension: spring suspension
Tire: 16 units
Ramp: Spring Ramp
Add: PLOT 3, OBA, AKRAN AVENUE, IKEJA, LAGOS
