80 Ton Dump Truck Trailer

Dump Truck Trailers Description:

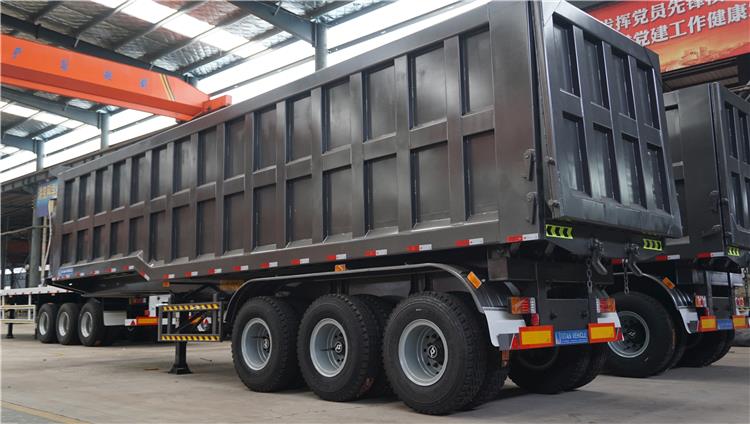

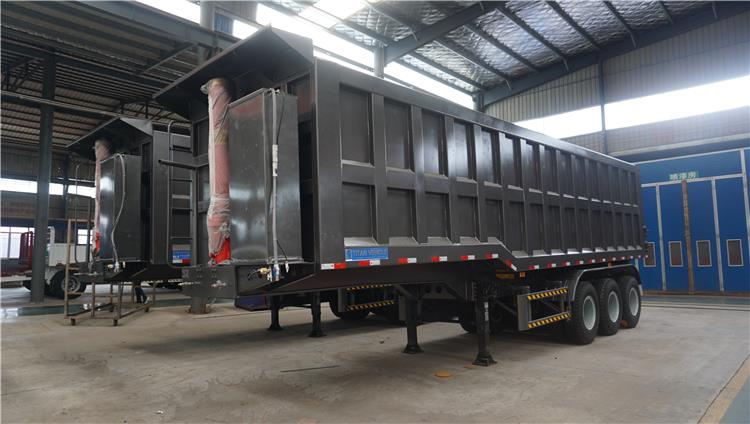

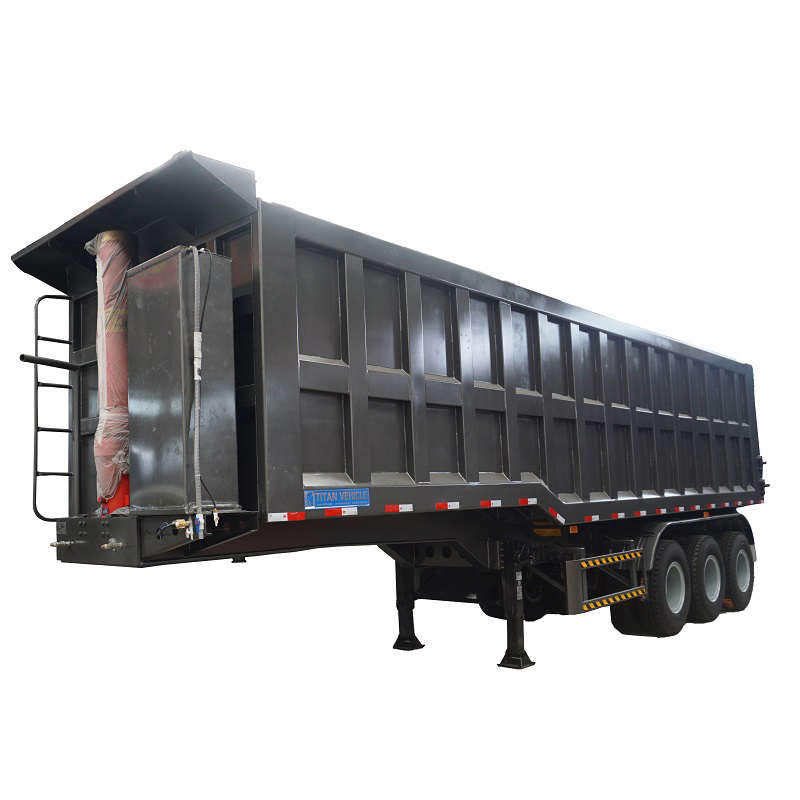

Tri axle dump truck trailer is a heavy duty dump trailer that usually lifts when dumping its hall in a chosen location. 80 ton dump truck trailer will help you to carry and offload bulk goods in a very easy and efficient manner, your operations will be highly affordable.

Sinotruk Nigeriadump trailer for sale with 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the dump truck trailer.

Price of 60 Ton Heavy Duty Dump Truck Trailers for Sale Near Me In Nigeria

Price of 60 Ton Heavy Duty Dump Truck Trailers for Sale Near Me In Nigeria

Price of 60 Ton Heavy Duty Dump Truck Trailers for Sale Near Me In Nigeria

Dump Truck Trailers Specification:

Dimension: 10200mm * 2500mm *3700mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(ton): 80 Ton

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / Sinotruk Nigeria Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Advantage:

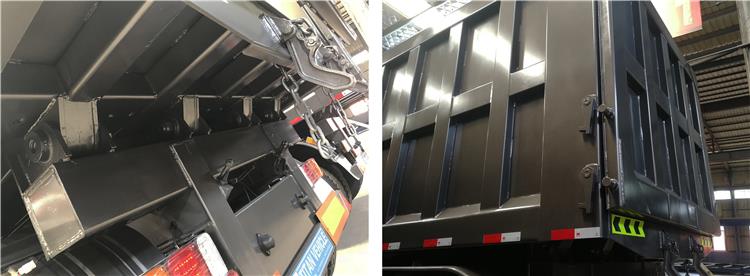

1. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

2. Double-plate main beam for dump truck trailer, which has a stronger carrying capacity, it is not easy to damage.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. The leaf spring is widened and thickened, the shock absorption effect is good.

5. Strengthened Ribs, unique structure design to maximize the payload.

Through the video below, you can learn about different types of tipper semi trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer. And the process, testing, packaging and customer feedback, etc.
