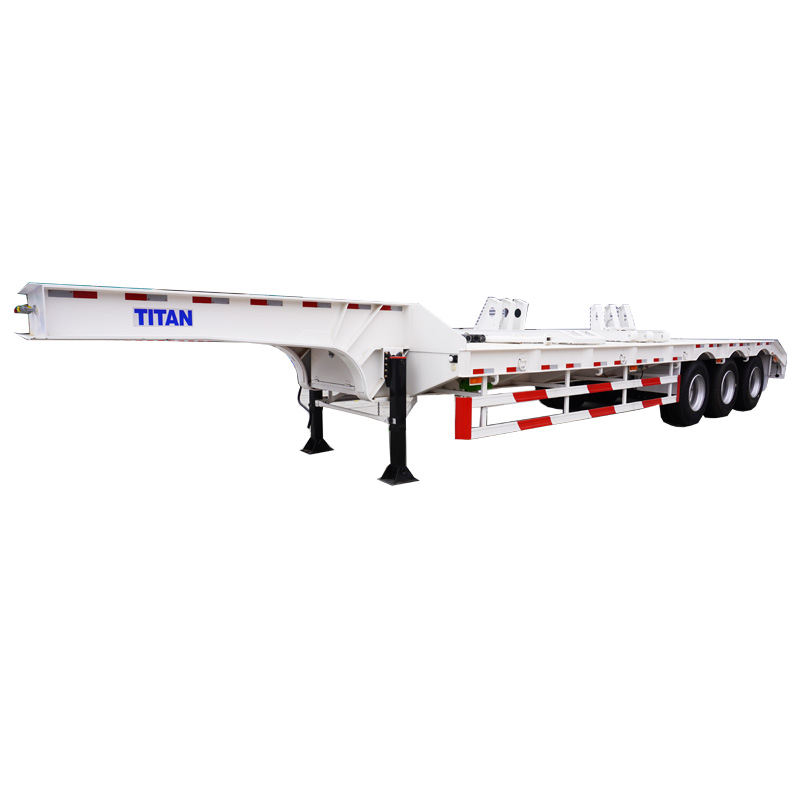

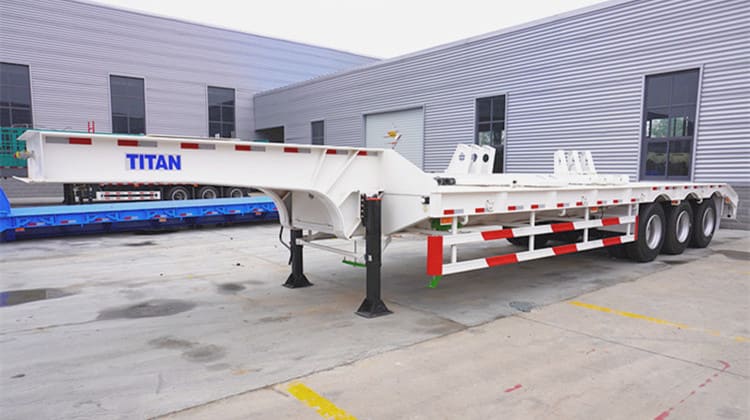

Tri Axle Low Bed Loader Trailer

Low Bed Container Trailer:

Tri axle 40 ton container low bed is widely used, mainly for medium and long-distance freight transportation. The lower the platform height of the low bed loader, the better the stability and safety. Our low bed container trailer has a large carrying capacity when transporting extra high and medium cargo.

Low bed container trailer for sale with Hydraulic Ramp. Three styles of low loader trailer ramps, the most common is spring ramp. There are also ordinary hydraulic ramps and folding hydraulic ladders. Sinotruk Nigeria produce very durable ones with high strength to meet transport needs. We use high strength steel material to ensure the capacity, the load can be up to 60 to 150 ton payload.

Tri Axle 40 Ton Container Low Bed Loader Trailer for Sale in Nigeria Enugu

Tri Axle 40 Ton Container Low Bed Loader Trailer for Sale in Nigeria Enugu

Tri Axle 40 Ton Container Low Bed Loader Trailer for Sale in Nigeria Enugu

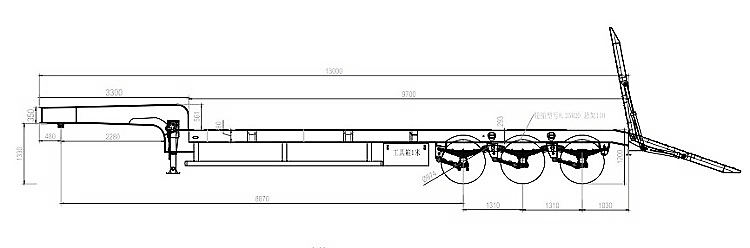

Specification of low bed loader:

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 40T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

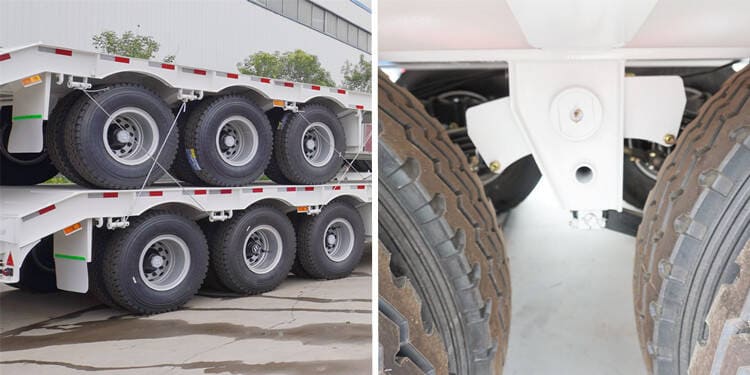

Advantage of container low bed:

1. Main beam adopts HG60 high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service life, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.

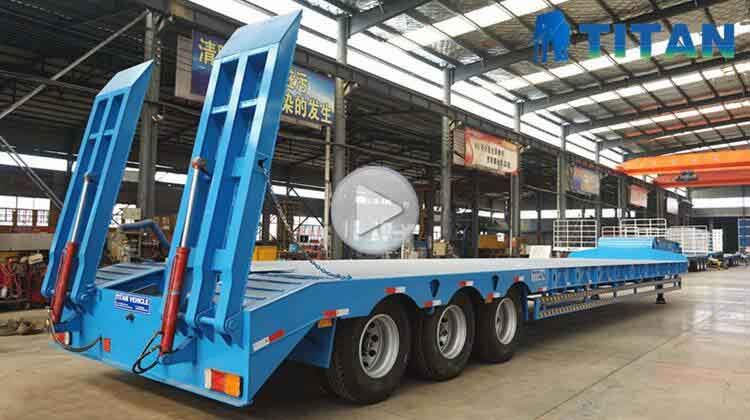

Through this videos, you can learn about different types of low bed loader trailers, as well as the process, testing, packaging and customer feedback, etc.
