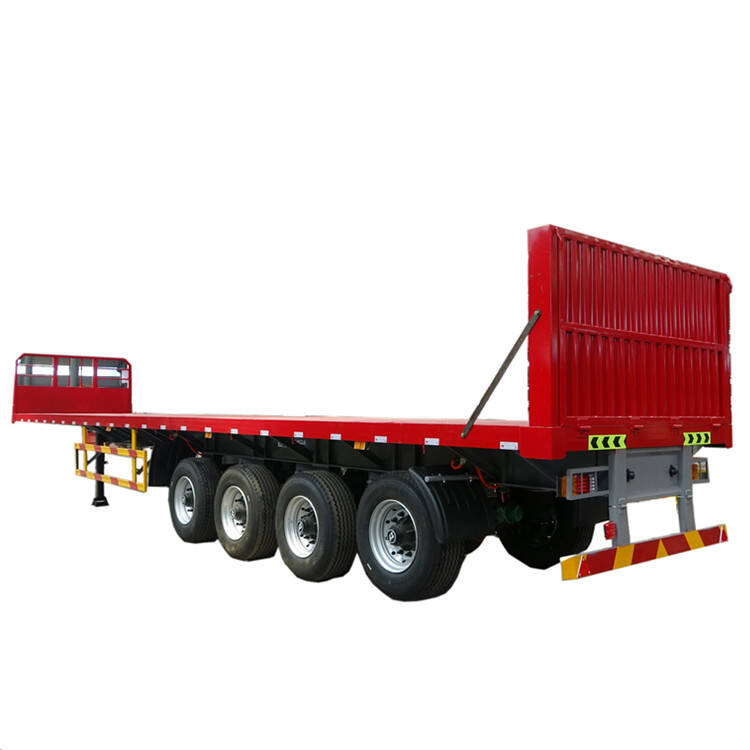

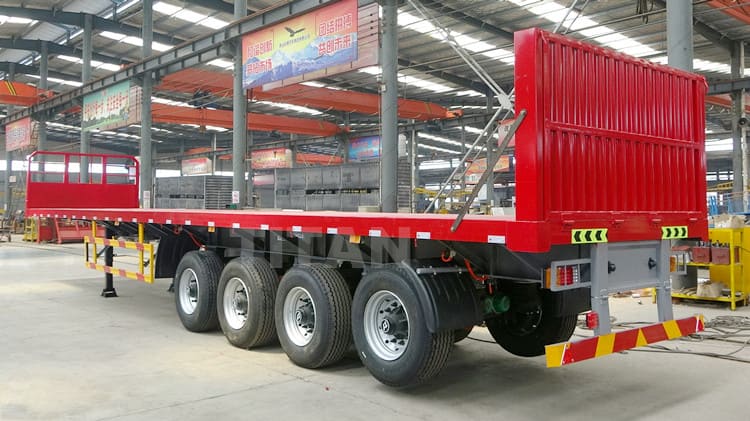

4 Axle 40 Feet Flatbed Semi Trailer

40 Feet Flatbed Trailer:

Sinotruk Nigeria adopts high strength steel material to manufacture the 40 feet flatbed semi trailer for sale, it can make the 4 axle flatbed trailer have a higher loading capacity and a longer service life.

To make sure the service life of the flatbed semi trailers, all the spare parts we adopt are World Famous brand.

How Much is 40 Feet Flatbed Semi Trailer for Sale in Nigeria Lagos Manufacturers

How Much is 40 Feet Flatbed Semi Trailer for Sale in Nigeria Lagos Manufacturers

How Much is 40 Feet Flatbed Semi Trailer for Sale in Nigeria Lagos Manufacturers

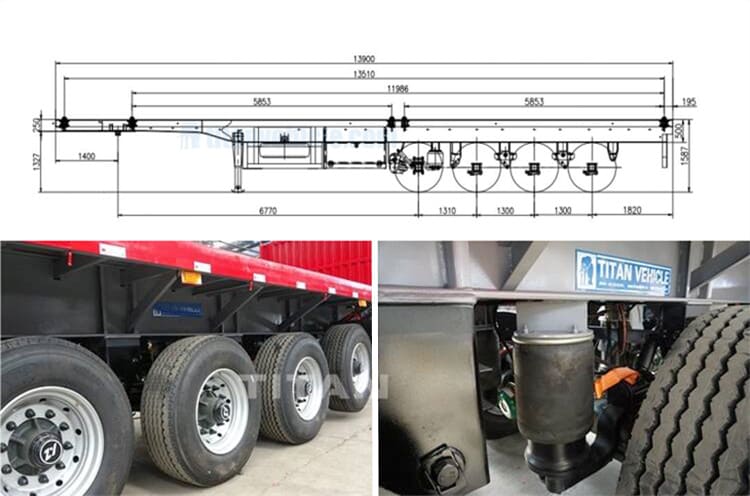

Specification of flatbed semi trailer:

Dimension(mm): 13000x2500x1530mm

Transport: 20ft, 40ft, 45ft container

Loading capacity(ton): ≤60T

Axles: 4 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Advantage of 4 axle flatbed:

1. Sinotruk Nigeria uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.

2. Durable mechanical widened spring suspension, make sure the stable and safety.

3. polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.

4. Hight Quality container locks, make sure the stable and safety of the loads.

Through this videos, you can learn about different types of flatbed trailers for sale, as well as the process, testing, packaging and customer feedback, etc.

4 Axle flatbed semi trailer details display video
