The end dump trailer design and configuration fully consider the actual needs of various transportation scenarios. The dump semi trailer achieves a good balance between carrying capacity, structural stability and ease of operation, meeting the rigid requirements of heavy material transportation and being able to flexibly cope with the needs of loading and unloading goods of various shapes. Therefore, the dump truck trailer is a multifunctional transportation equipment that combines efficiency and safety.
Heavy Duty Hydraulic End Dump Truck Semi Trailers Prices in Nigeria | Dumper Trailer for Sale
Heavy Duty Hydraulic End Dump Truck Semi Trailers Prices in Nigeria | Dumper Trailer for Sale
Model: 3 Axle Semi Tipper Trailer
Dimension: 9000mmx2500mm x4000mm(inside dimension)
Load Capacity: 60 ton
Landing Gear: 28 ton
Tipping System: hydraulic cylinder system
Axles: 3 axles, 13ton, TITAN brand

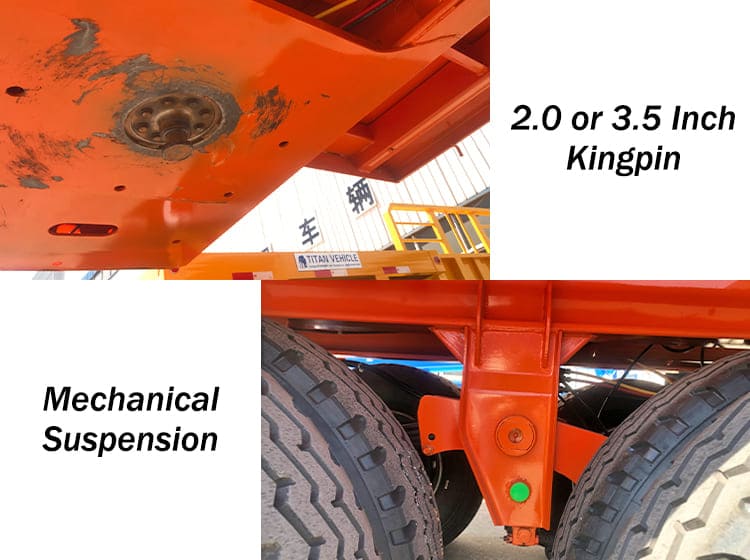

Kingpin: JOST brand 2.0 /3.5inch

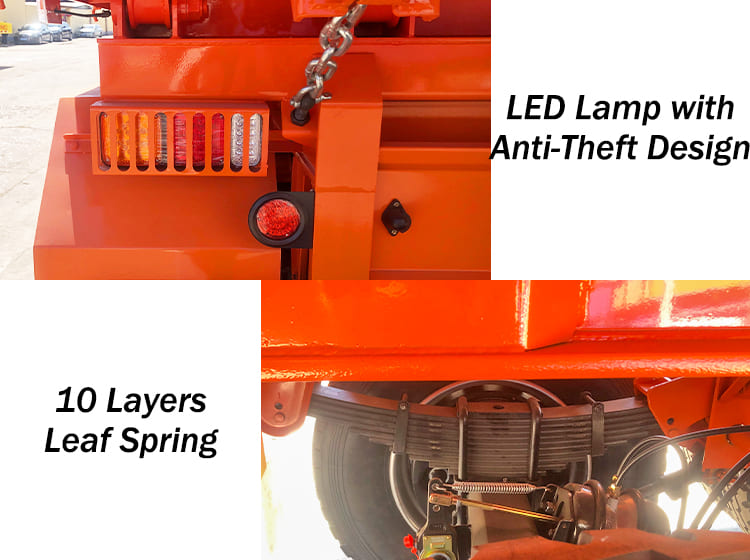

Leaf Spring: 10 layers
Tire: 12 units, 12R22.5
Suspension: mechanical suspension
Lamp: LED Lamp with protective net
As an important supporting structure of the dump trailer, the flip stand plays a key auxiliary role during operation. Especially when the hydraulic dump trailer rear flip unloading is carried out under full load, the dump trailer prices flip stand can effectively share the load pressure of the frame, reduce the stress concentration on the main structure, reduce the possibility of fatigue damage, and thus extend the service life of the dump trailer prices.
The heavy duty dump trailers flip stand also has a certain adjustment function, which can quickly adjust the support angle and contact surface according to different construction terrains. This flexible adjustment performance helps to improve the stability and safety of the end dump in complex environments, allowing to maintain a good working posture under different site conditions, and enhances the ability of the end dump trailer to cope with changing construction scenes.

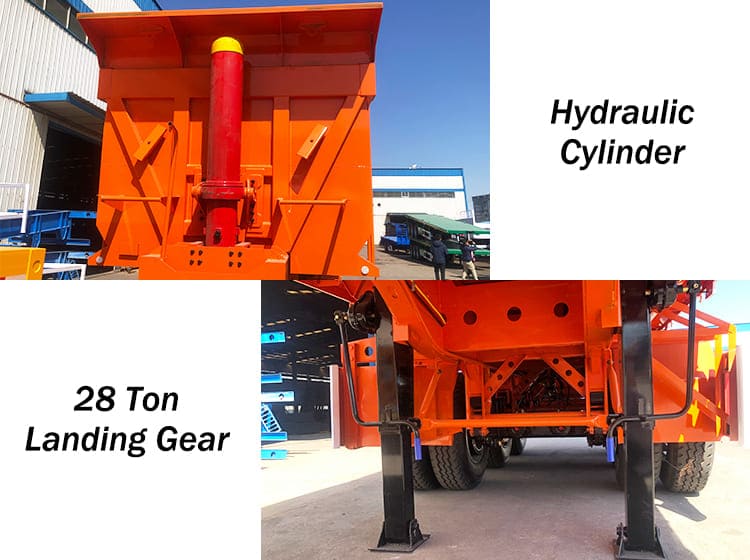

The application of the hydraulic cylinder system in the dump semi trailer greatly improves the work efficiency of the dump truck trailer. Its integrated structural design is particularly suitable for work sites with small spaces, which simplifies the equipment layout and reduces space waste. The dumper trailer for sale hydraulic cylinder system has high work efficiency and can quickly complete lifting and lowering operations, effectively shortening the cargo loading and unloading time.
More importantly, the dump trailer for sale hydraulic cylinder can accurately adjust the lifting height and angle, which not only ensures the stability of the cargo during unloading, but also effectively prevents the accidental spillage of bulk cargo due to improper angles, thereby improving the safety level of the operation and reducing the operational risk in heavy duty dump trailers.

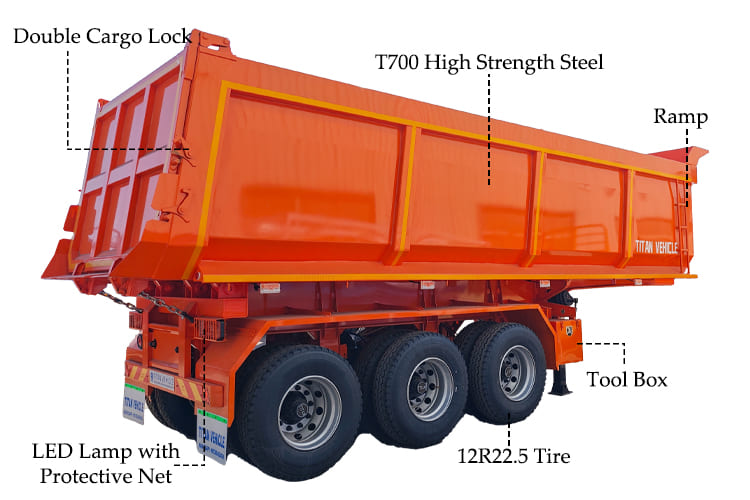

In terms of material selection, the main beam of the dump trailer uses T700 high strength steel, which has stronger tensile and load-bearing properties than ordinary steel, and can maintain stability and structural integrity of heavy duty dump trailers under high load conditions. The application of the high strength steel enables the hydraulic dump trailer to still have good durability and pressure-bearing capacity when facing heavy cargo transportation tasks.
The dump trailer prices side beam adopts a thickened design to effectively improve its torsion and compression resistance. Under the lateral impact force and torsional load generated when unloading heavy objects, the end dump side beam is not easy to bend or crack, thus ensuring the reliability of the end dump trailer structure.
In addition, three high strength steel columns are added to the outside of the dump semi trailer side beam to further enhance the dumper trailer for sale body's ability to resist lateral pressure, reduce the risk of structural deformation caused by load offset or roll, and improve the safety and structural stability of the dump trailer for sale.
The braking system of the dump trailer is also an important guarantee of its performance. The TITAN heavy duty dump trailers is equipped with 16 ton brake pads, which effectively improves the braking response speed and can significantly shorten the braking distance in an emergency to ensure driving safety.
The air pipe of the dump trailer prices brake system is made of high-pressure rubber material, which can extend its service life to more than 10 years. In addition, the hydraulic dump trailer wiring system uses durable cables to ensure a service life of at least 5 years.
Before shipment, every end dump trailer undergoes TITAN specialized anti rust protection process. The dump semi trailer are coated with a wax layer, creating a sealed protective barrier, and are then the dump truck trailer covered with a waterproof tarp to further minimize the risk of rust through physical isolation. The exclusive packaging methods from TITAN dumper trailer for sale ensure that dump trailer for sale are well-protected against rust caused by high humidity and temperature fluctuations during sea transport.
