Nigeria Sinotruk Local Sales Center 2025 Howo New Model
Top One World Famous Brand - Sinotruk Nigeria
Nigeria Sinotruk Local Sales Center 2025 Howo New Model
The low floor height of the low bed trailer price plays a key role in reducing the center of gravity of the loaded equipment, which helps enhance stability and lowers the risk of tipping—especially during sudden turns or emergency actions.
Featuring reinforced loading ramp, the low bed trailer price allows for easier loading and unloading of heavy machinery. The design reduces the need for extra large lifting equipment, offering a more efficient and streamlined operation.
Heavy Duty Low Bed Trailer Price Types for Sale in Nigeria
Heavy Duty Low Bed Trailer Price Types for Sale in Nigeria
Looking for quality low bed trailer? Click to get best quote!

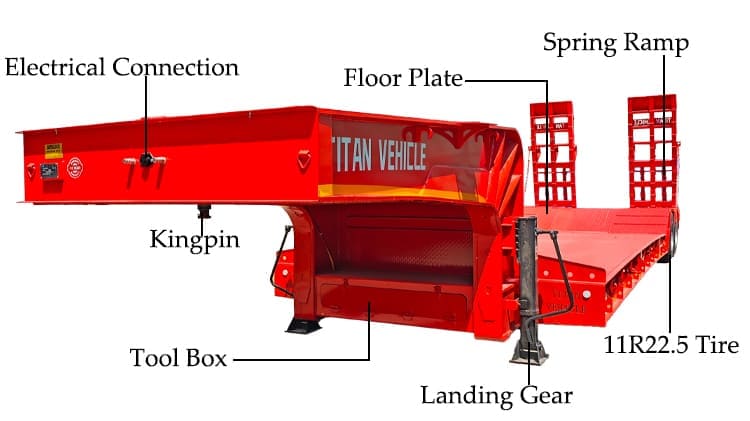

Overall Dimension: 14400mm*3360mm*1710mm
Load Capacity: 80 ton
Floor Plate: 5mm thick pattern plate
Landing Gear: 28 ton, JOST brand
Axles: 2 line, 4 axles, 13ton, TITAN brand
Tire: 16 units, 11R22.5
Ramp: thickened spring ramp
Suspension: mechanical suspension
Leaf Spring: 10 layers
Lamp: LED Lamp
Looking for quality low bed trailer? Click to get professional recommendations!

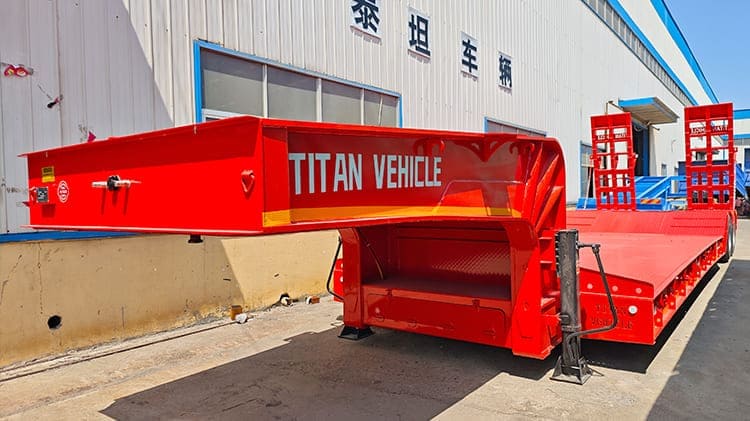

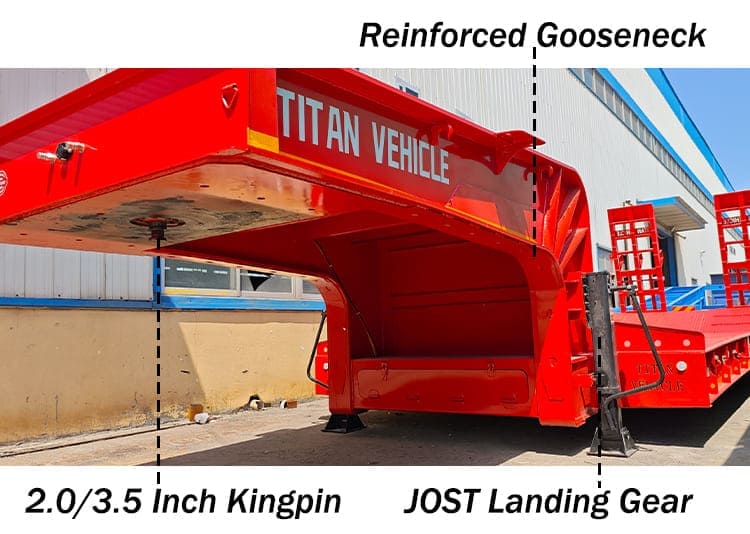

The traction device adopts an integral steel plate structure, and uses a homogeneous steel plate with a thickness of 12mm. During the operation of heavy duty low bed trailer, the traction plate can not only stably transmit traction, but also effectively buffer the impact force from the road through its own structural deformation.
The design enables the low bed to maintain the stability of traction power when facing the complex and changeable terrain conditions in Nigeria, ensuring the smooth progress of the entire transportation process.

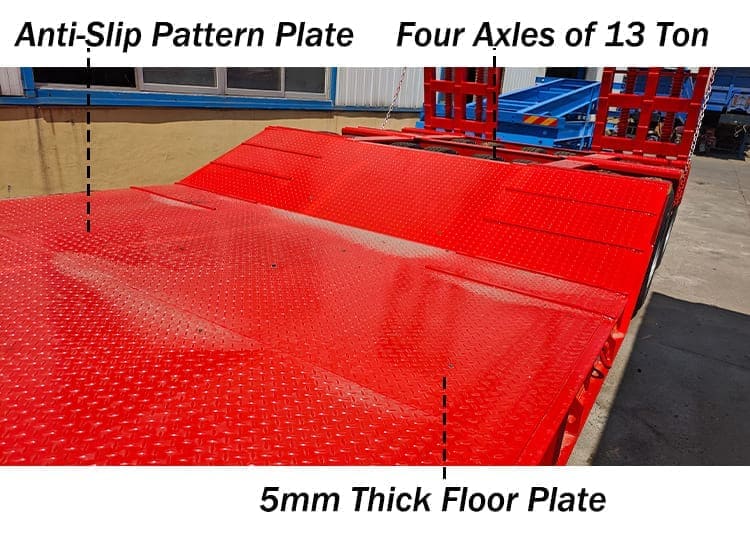

The rope tightener cooperates with the floor plate to build a multi-point reinforced three-dimensional fixing system, which effectively prevents the equipment from slipping during driving, especially in the case of sharp turns or emergency braking, and can ensure the overall stability of the low bed trailer types operation and the safety of the goods.

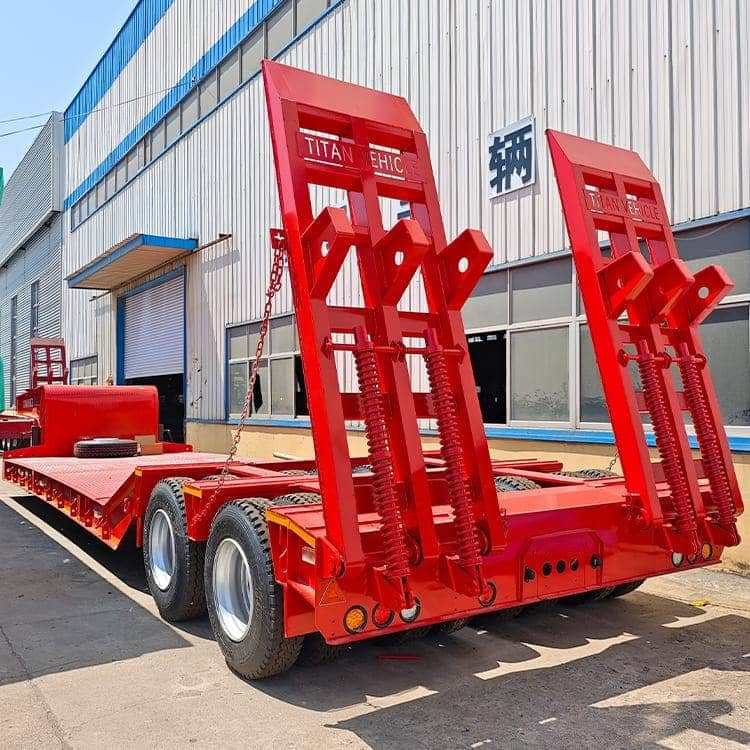

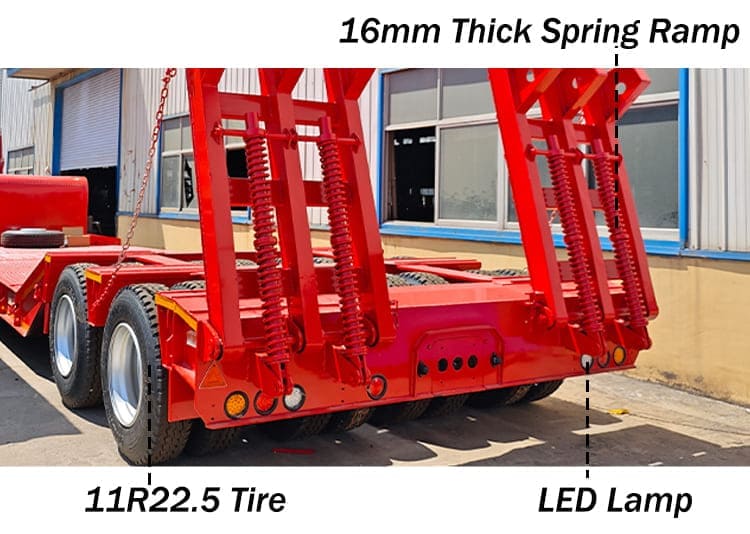

The TITAN low bed trailer price is also equipped with a 16mm thickened spring ramp, whose sturdy structure can provide sufficient support for heavy equipment. The ramp has a simple design and does not require additional manpower during operation. A single person can easily complete the loading and unloading of the ramp, which improves the efficiency and convenience of the operation.

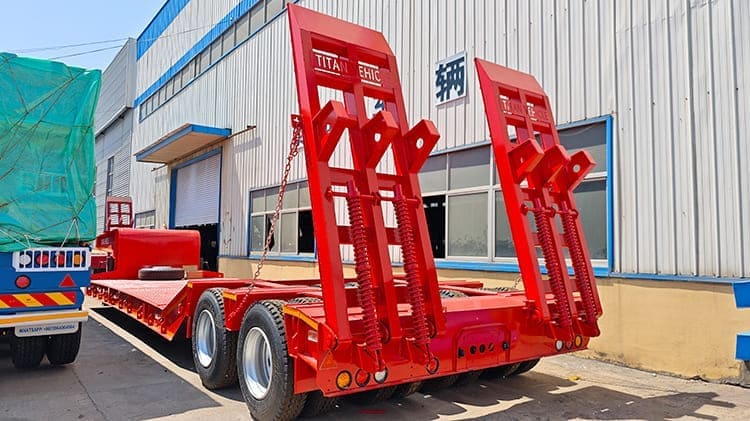

Based on an in-depth investigation of local market demand, TITAN optimized the axle configuration of the low bed to ensure its stability and durability under complex road conditions. The low bed trailer price is equipped with a 2-line 4-axle 13-ton axle structure. Multiple axles significantly enhance the load-bearing capacity and reduce the risk of axle damage due to excessive load.
In terms of the braking system, the heavy duty low bed trailer is equipped with 16-ton brake pads, which significantly improves the response efficiency of the braking system. In emergency braking, low bed trailer types can effectively prevent tire locking, thereby better protecting the tire and extending the service life.
High-tonnage brake pads not only enhance braking capacity, but also help shorten braking distance. Especially under complex or slippery road conditions, the performance is more stable and reliable, and the braking distance can be shortened by more than 5 meters, enhancing driving safety.
In addition, the low bed trailer price uses brake air pipes made of high-pressure rubber material, which are significantly more durable than traditional air pipes and are expected to be used for up to 10 years, thereby reducing the maintenance frequency of the vehicle in long-term operation and reducing maintenance costs.
TITAN low bed trailer types are equipped with 11R22.5 tires, which have good load-bearing capacity and meet the needs of heavy cargo transportation. Customers can also customize according to own operational needs to cope with different road conditions.
TITAN investigates users' actual usage scenarios to ensure that low bed trailer types products maintain good stability, safety and a long service cycle under various terrain conditions, thereby improving the overall use value.
The TITAN low bed uses a specialized packaging process that offers double-layer protection. Initially, each heavy duty low bed trailer is coated with a moisture-resistant wax, followed by a secure wrapping in a waterproof covering. The method effectively protects the heavy duty low bed traile from humidity-related damage during sea transport.
