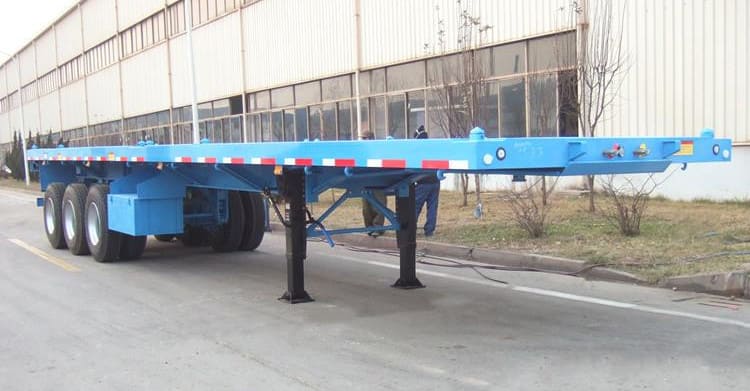

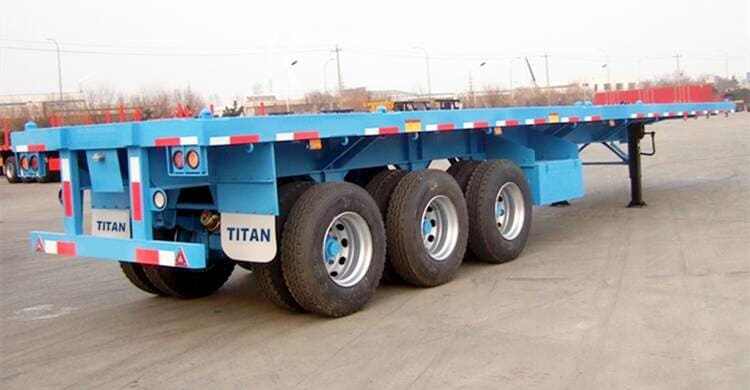

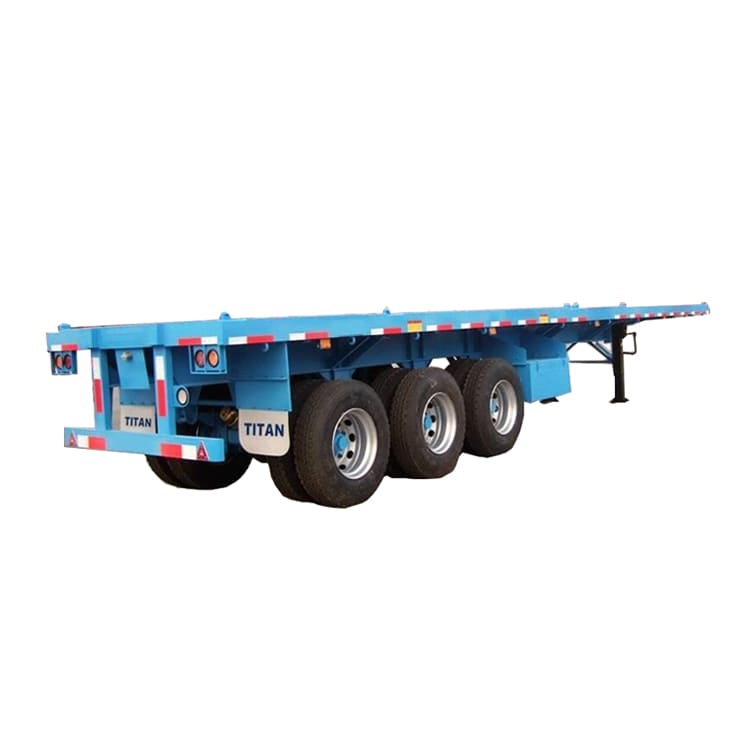

Tri Axle 40 Foot Flatbed Trailer

Flatbed Trailer for Sale:

Flatbed trailer for sale, 40 foot is the most popular model. Sinotruk Nigeria tri axle flatbed trailer is designed for transporting 40ft and 20ft containers and loose cargo.

Sinotruk Nigeria tri axle trailer adopts high strength steel material to manufacture, it can make the flatbed trailer for sale near me have a higher loading capacity and a longer service life.

China Tri Axle 40 Foot Flatbed Trailer for Sale in Nigeria Escravos Near Me

China Tri Axle 40 Foot Flatbed Trailer for Sale in Nigeria Escravos Near Me

China Tri Axle 40 Foot Flatbed Trailer for Sale in Nigeria Escravos Near Me

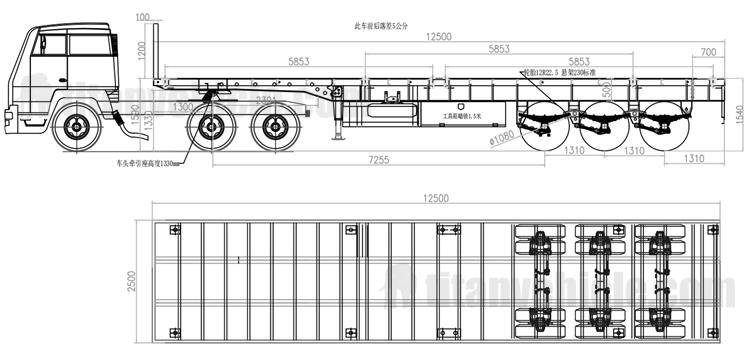

Specification of 40 foot trailer:

Model: Tri axle 40 foot flatbed trailer

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

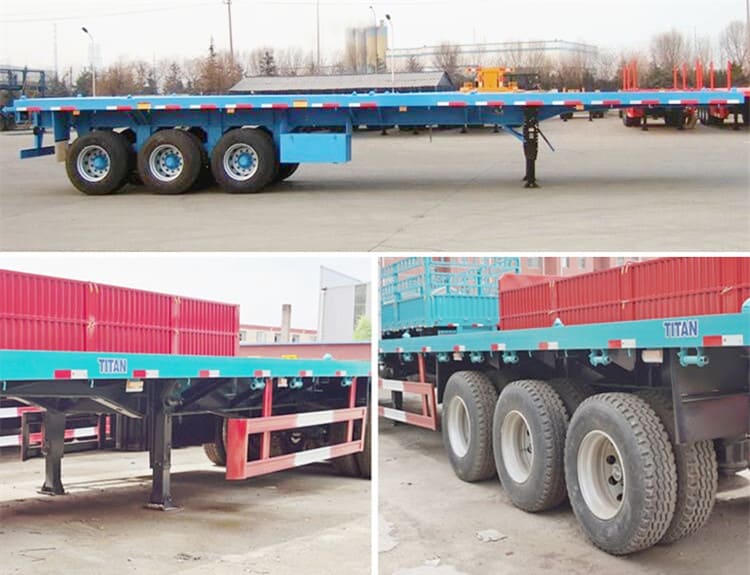

Advantage of flatbed trailer:

1. China tri axle flatbed trailer uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.

2. To make sure the service life of the three axle flatbed trailer, all the spare parts we adopt are World Famous brand.

3. Also the flatbed semi trailer for sale floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

4. There are 9 cross beams, the distance between two tilted supports is less than 50 centimeters, it can help the main beam have a better loading capacity.

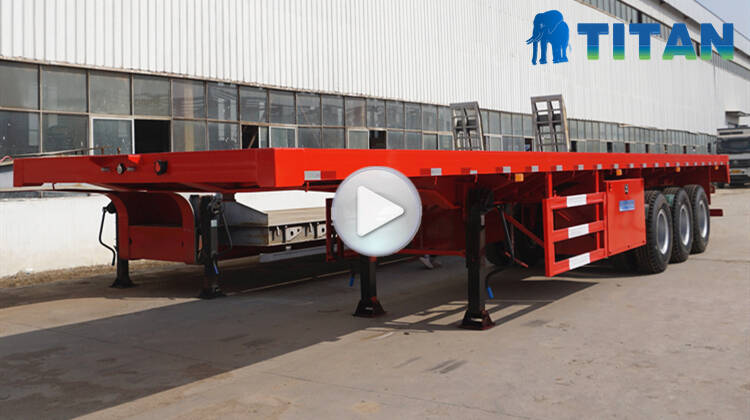

Through this video below, you can learn about different types of flatbed semi trailer,such as 2 axle,3 axle,4 axle, flatbed etc. As well as the process, testing, packaging and customer feedback, etc.
