120 Ton Detachable Gooseneck Trailers

Detachable Gooseneck Trailer:

The 120t detachable gooseneck trailer relates to a hinged frame assembly ideally used for connecting a trailer of the low-bed type to a tractor. This detach trailer for sale has been widely accepted in the transportation of heavy equipment such as power shovels, cranes and tractors. This gooseneck trailer is usually attached to the tractor using a gooseneck that is normally detached from the front end of the trailer.

China 120 Ton Detachable Gooseneck Trailers for Sale in Nigeria Akassa

China 120 Ton Detachable Gooseneck Trailers for Sale in Nigeria Akassa

China 120 Ton Detachable Gooseneck Trailers for Sale in Nigeria Akassa

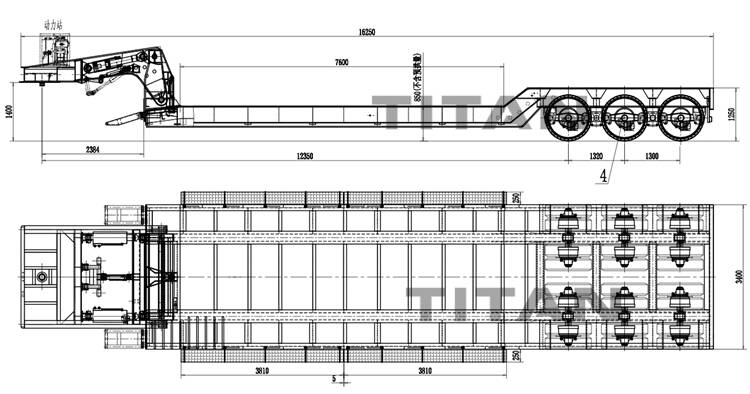

Specification of detachable trailer:

Dimension: 17000mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 3 line 6 axle

Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

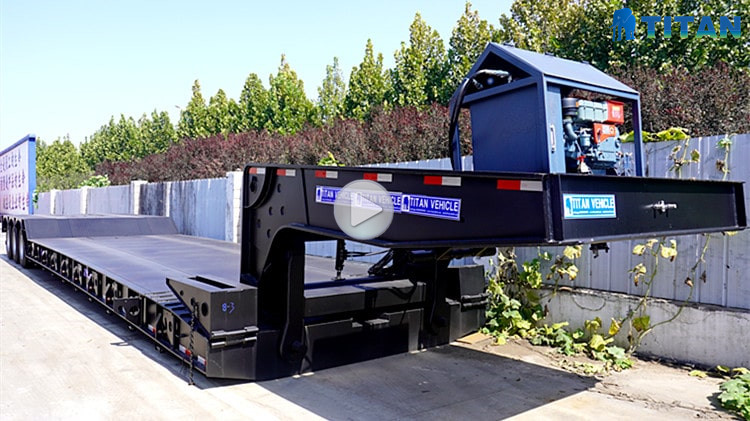

Through the video, you can know more details of 120T Detachable Gooseneck Trailer , etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
