Bitumen Tank Trailer

Video of Bitumen Tank Trailer



2025 New Model Asphalt Tanker Trailer, Get Best Price.

Asphalt Tanker Trailer Price: 15000 USD

Bitumen trailer in Nigeria is a special vehicle specially used for transporting high-temperature liquid asphalt, which is widely used in road construction, building construction and other fields.

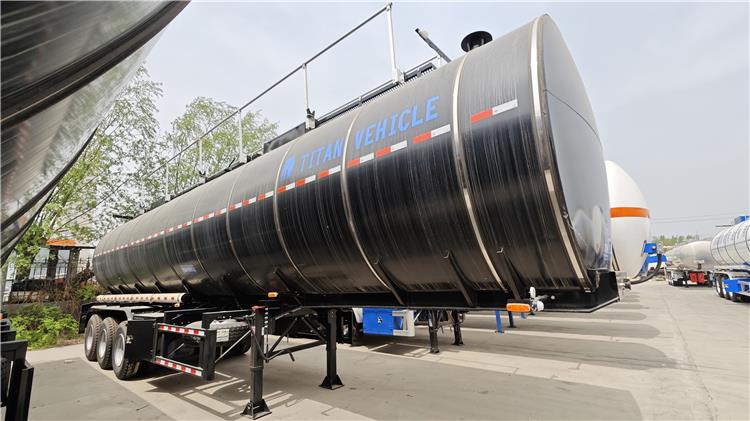

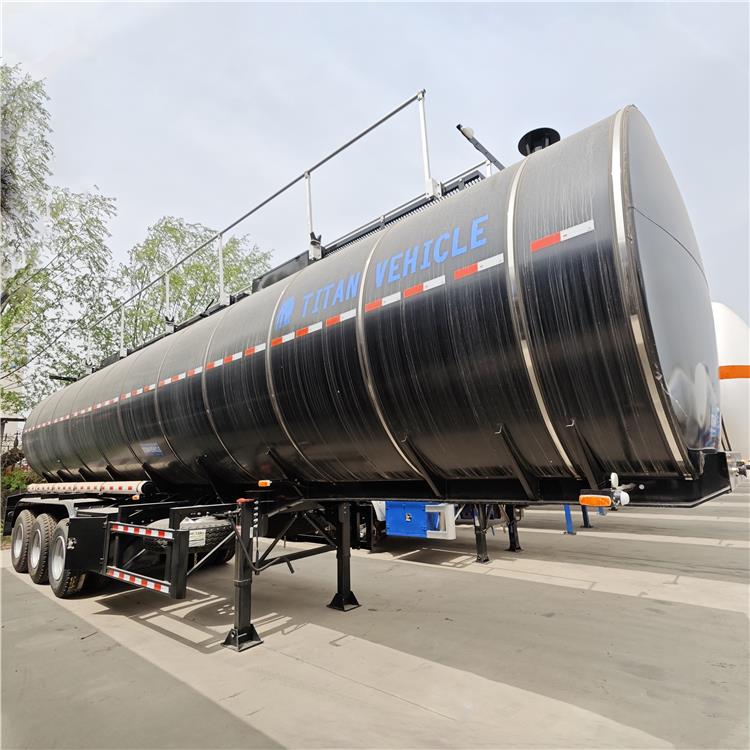

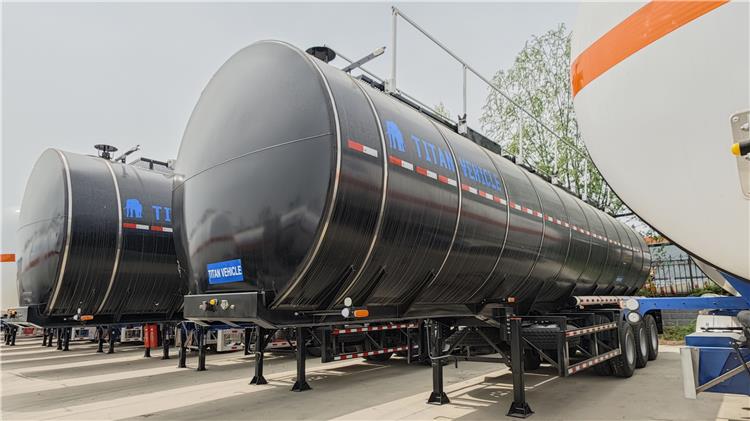

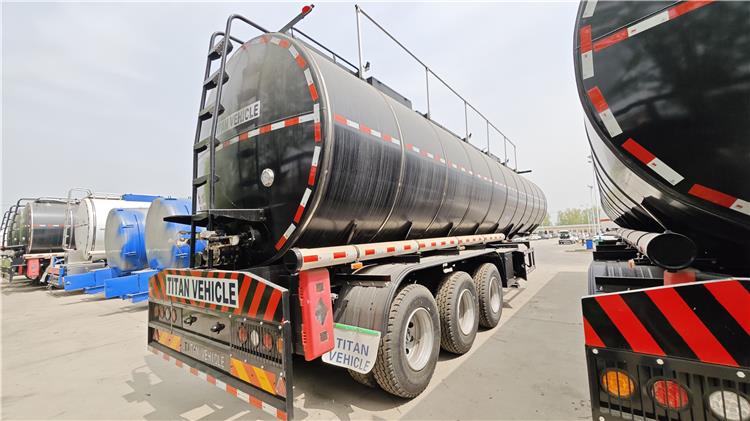

Bitumen Tank Trailer for Sale In Nigeria Abuja - Asphalt Tanker Trailer

Bitumen Tank Trailer for Sale In Nigeria Abuja - Asphalt Tanker Trailer

Bitumen Tank Trailer for Sale In Nigeria Abuja - Asphalt Tanker Trailer

Bitumen Tank Trailer for Sale In Nigeria Abuja - Asphalt Tanker Trailer

2025 New Model Asphalt Tanker Trailer, Get Best Price.

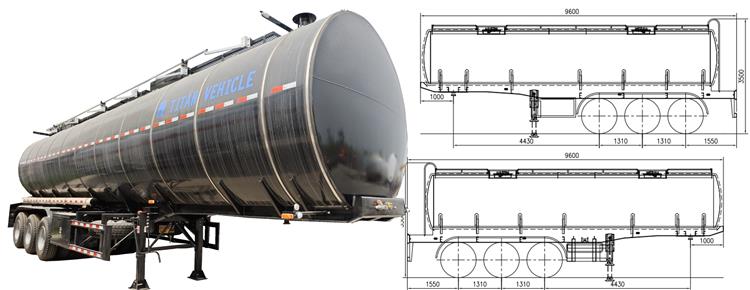

Specification of Bitumen Trailer

Dimensions: 9600 mm(Length) x 2500 mm(Length) x 3500mm(Height)

Tank Capacity: 38,000 liters

Compartments: 1 compartments

Discharge: 3” or 4” ball valves

Discharge Pipes: 4” rubber hose, 2 units,

Main Beams: Q345B steel fabricated I beams

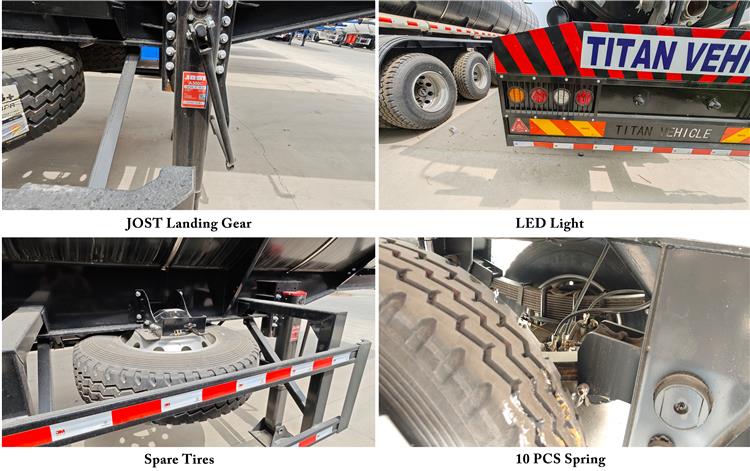

Landing Gears: Jost  landing gear

Axles: 3 axles, 16T

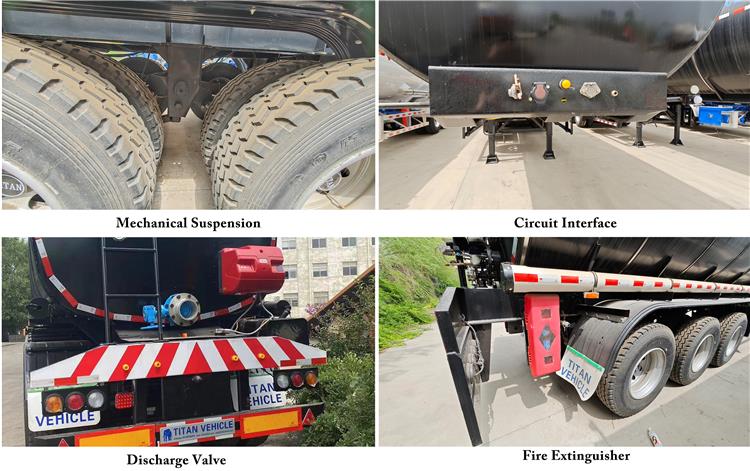

Suspensions: Mechanical suspension or air suspension

Brake System: WABCO

2025 New Model Asphalt Tanker Trailer, Get Best Price.

Advantage of Bitumen Tank Trailer

Bitumen tank trailer in Nigeria adopts a double-layer insulation structure (polyurethane foam + rock wool) to ensure that the asphalt remains at a high temperature (usually 150-180℃) during transportation to prevent solidification.

Asphalt tanker trailer in Nigeria is equipped with a heating system (thermal oil or electric heating) suitable for long-distance transportation.

Bitumen trailer in Nigeria uses high-temperature and corrosion-resistant tank materials (such as Q345R steel plate) to prevent asphalt from corroding the tank. Bitumen tank trailer in Nigeria's multiple safety valves and pressure balancing devices prevent excessive pressure or vacuum deformation in the tank. Asphalt tanker trailer in Nigeria's optional pneumatic unloading, hydraulic unloading or gravity unloading methods improve construction efficiency. Bitumen trailer in Nigeria is equipped with an asphalt pump to speed up unloading.

The bitumen tank trailer in Nigeria adopts cylindrical or elliptical shape, double-layer insulation, and polished inner wall to reduce asphalt residue.

The heating method of asphalt tanker trailer in Nigeria adopts thermal oil heating, electric heating or flame heating.

The unloading method of bitumen trailer in Nigeria is air pressure unloading (0.2-0.4MPa), hydraulic unloading, and gravity unloading.

The bitumen tank trailer in Nigeria is equipped with safety devices, pressure gauges, temperature sensors, explosion-proof valves, emergency cut-off devices, etc.

The chassis configuration of asphalt tanker trailer in Nigeria adopts high-strength steel beams, air suspension or leaf spring suspension, which is suitable for heavy-load transportation.
