35CBM Tipper Trailer

Tipper Trailer Description：

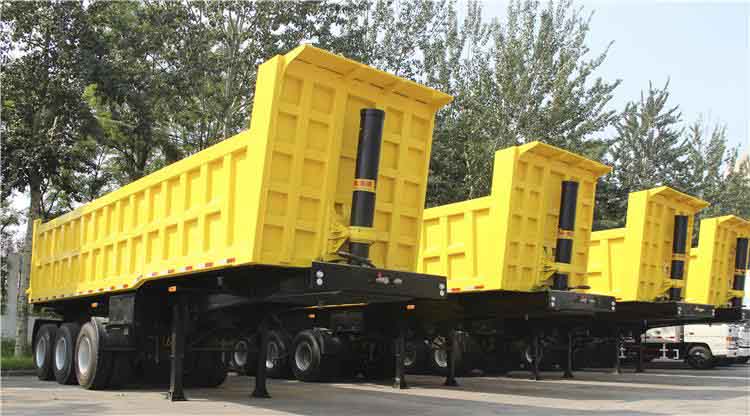

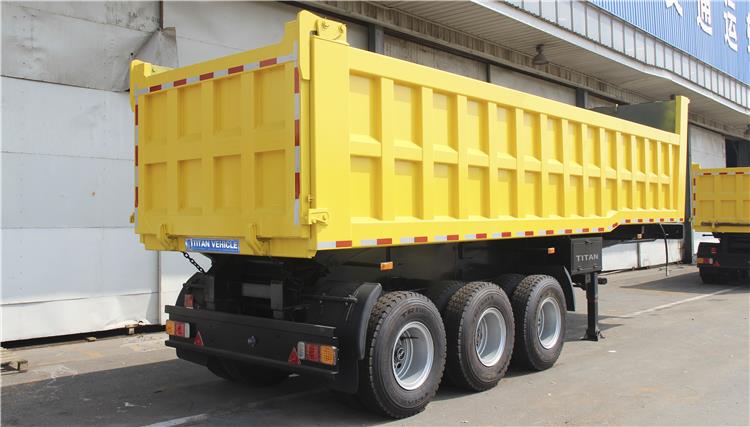

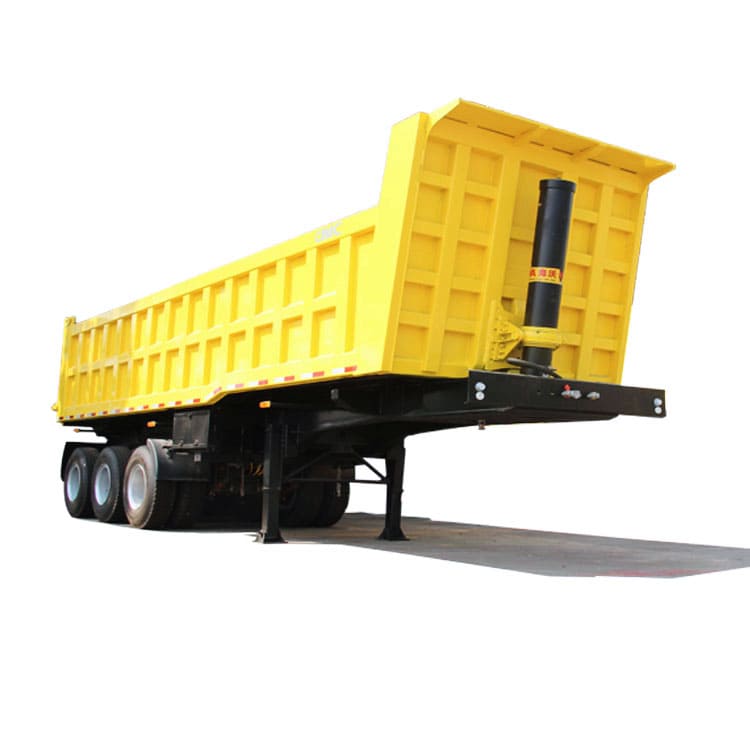

Sinotruk Nigeria 3 Axles 35cbm tipper trailer  adopt high strength steel to make it durable when load the sand or small stones or rocks. And the loading capacity are 40t, 60t, 80t.

Sinotruk Nigeria 3 Axles 35cbm tipper trailer  equipped with reliable hydraulic HYVA cylinder. We can customize the tipper trailers according to your special need, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.

We use well-known brand axles, FUWA, BPW. It’s with high performance, and reliable to use.

35CBM Hydraulic Tipper Trailer Price In Nigeria Benin | What is the Price of Tipper Semi Trailer

35CBM Hydraulic Tipper Trailer Price In Nigeria Benin | What is the Price of Tipper Semi Trailer

35CBM Hydraulic Tipper Trailer Price In Nigeria Benin | What is the Price of Tipper Semi Trailer

35CBM Hydraulic Tipper Trailer Price In Nigeria Benin | What is the Price of Tipper Semi Trailer

35CBM Tipper Trailer Specification：

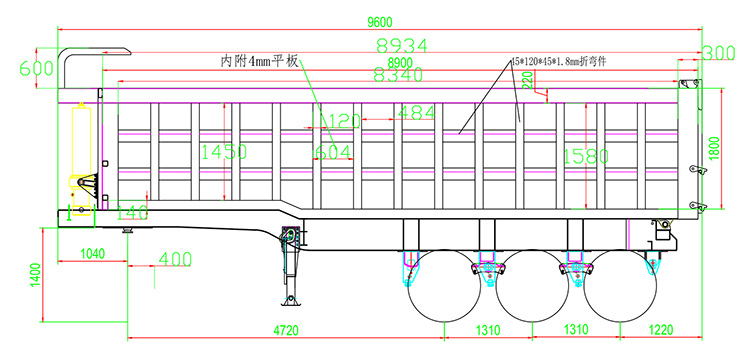

Dimension: 8900mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 35m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / Sinotruk Nigeria Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

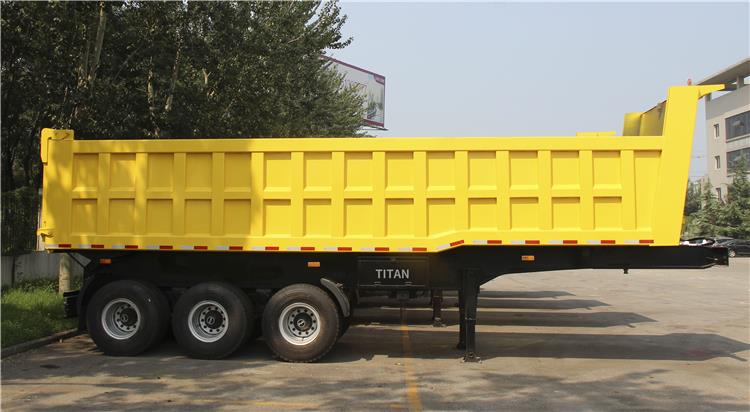

3 Axles 60 Ton Semi Tipper Trailer Advantage:

1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.

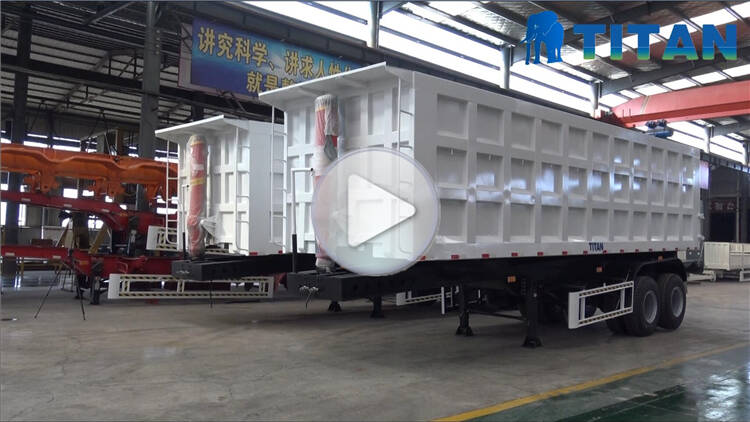

Through the video below, you can learn about different types of tipper semi trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer. And the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry!

We will provide more details, price, catalog, drawing, videos for you!
