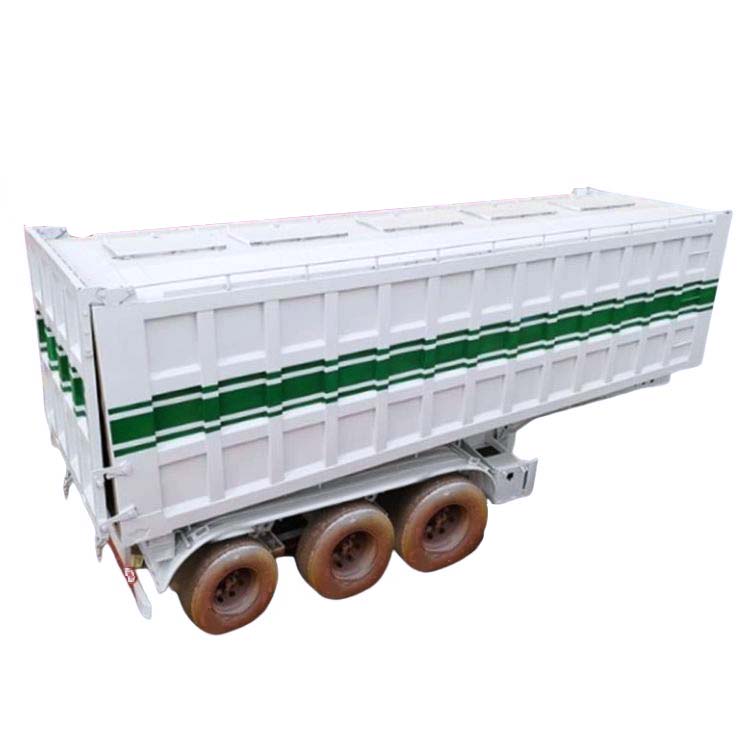

3 Axles 40 Cubic Rock Dump Trailer

3 Axles 40 Cubic Rock Dump Trailer description:

The 3 axles 40 cubic rock dump trailer is very efficient at transporting and unloading coals. Limestone, sand, and other loose materials in bulk.  hydraulic tipper semi trailer can be custom designed according to customer specific requirements.

3 Axles 40 cubic rock dump trailer cylinders are available to allow the trailer to carry more loads. Customers also can choose either left - or right -or side dumping configuration.

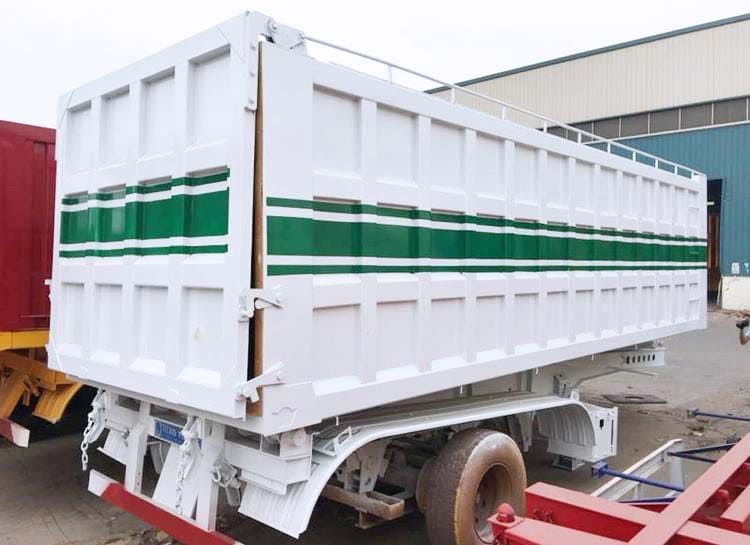

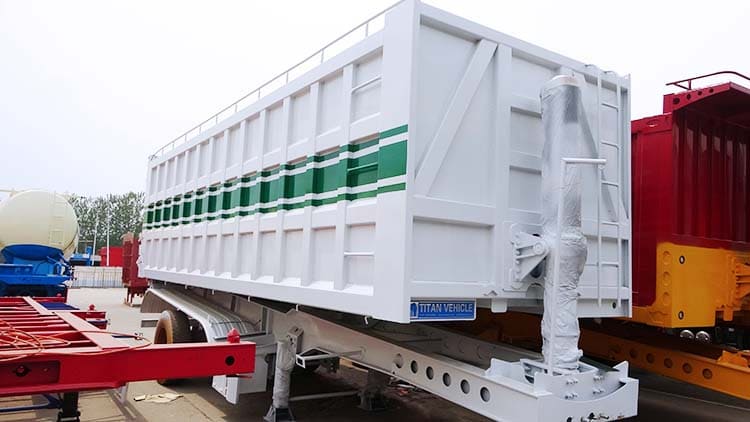

Semi Dump Trailer | 3 Axles 40 Cubic Rock Dump Trailer for Sale in Nigeria

Semi Dump Trailer | 3 Axles 40 Cubic Rock Dump Trailer for Sale in Nigeria

Semi Dump Trailer | 3 Axles 40 Cubic Rock Dump Trailer for Sale in Nigeria

Semi Dump Trailer | 3 Axles 40 Cubic Rock Dump Trailer for Sale in Nigeria

3 Axles 40 Cubic Rock Dump Trailer Specifications:

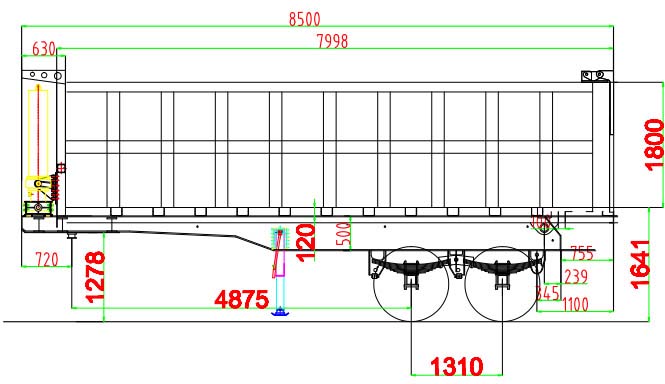

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 40 Cubic

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / Sinotruk Nigeria Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Through the video below, you can learn about different types of tipper semi trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer. And the process, testing, packaging and customer feedback, etc.
