40Ft Semi Low Bed Truck Trailer

Semi Low Bed Trailer:

Sinotruk Nigeria semi low bed trailers are widely used in heavy machines transportation.

Sinotruk Nigeria 40ft low bed trailer can satisfy the concentrated force, the anti bump, the distortion resistance and adopts HG60 High Strength Steel Material. we use it to make sure that our Sinotruk Nigeria 3 axle low bed trailer is with a long service life and to avoid unnecessary maintenance.

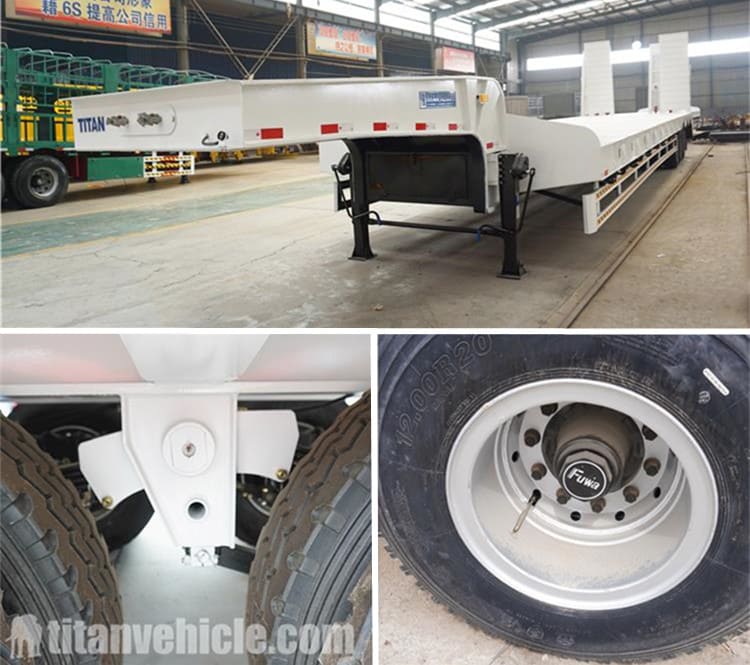

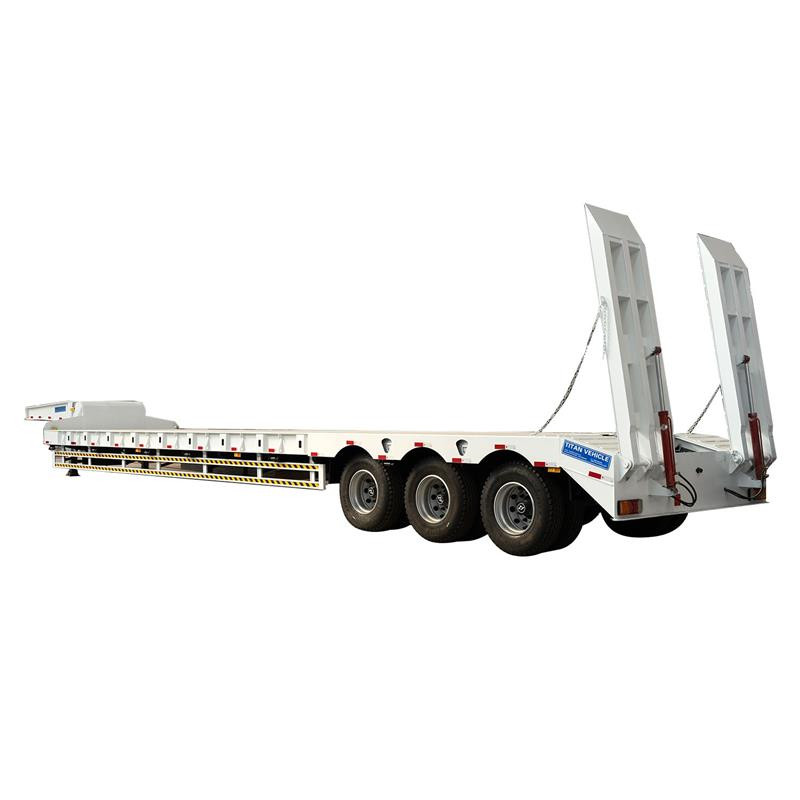

3 Axle 40Ft Semi Low Bed Truck Trailer for Sale Price in Nigeria

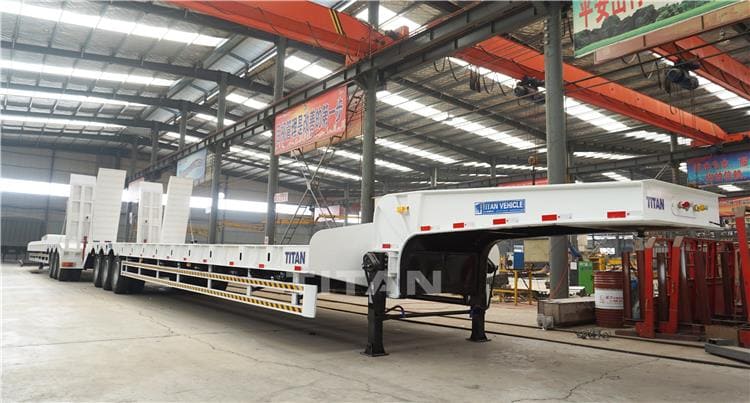

3 Axle 40Ft Semi Low Bed Truck Trailer for Sale Price in Nigeria

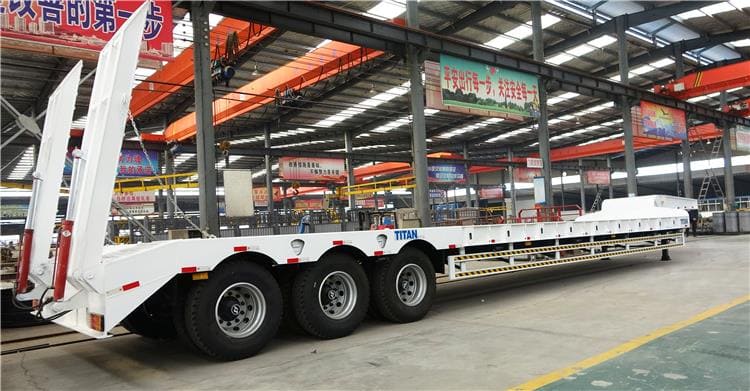

3 Axle 40Ft Semi Low Bed Truck Trailer for Sale Price in Nigeria

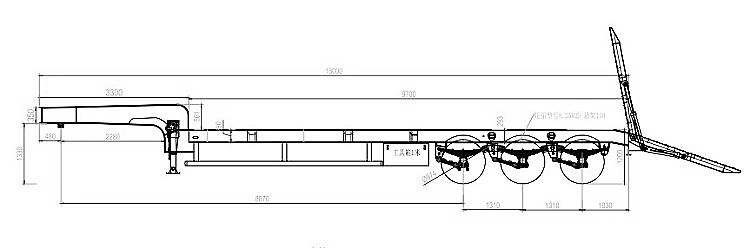

Specification of low bed truck for sale:

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 60T

Axle: 13T/16T, FUWA / BPW

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

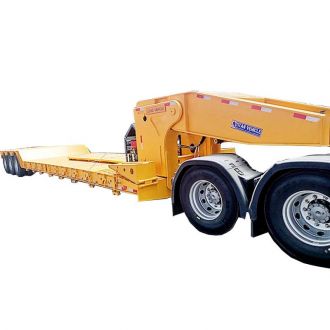

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Advantage of low bed trailer price:

1. Main beam adopts HG60 high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service life, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.

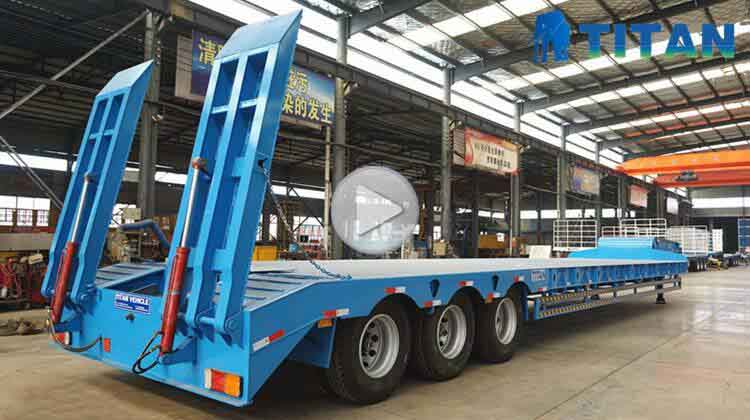

Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
