3 Axle Fence Semi Trailer

Fence Semi Trailer Price Description:

The semi trailer with detachable long sidewall use to load a wide range of bulk cargo, like sand, bags, poultry etc. Fence semi trailer is very widely used in the transportation industry. Suitable for the mid/long distance transportation of the mid/heavy duty bulk cargo. The fence semi trailer price can be added with a container turn lock to transport the container.

Fence cargo semi trailer has a fence structure design. Sinotruk Nigeria have 2/3/4 axles, and load capacity has 30/40/60/80/100 tons for your choice. Customizable color and side wall height.

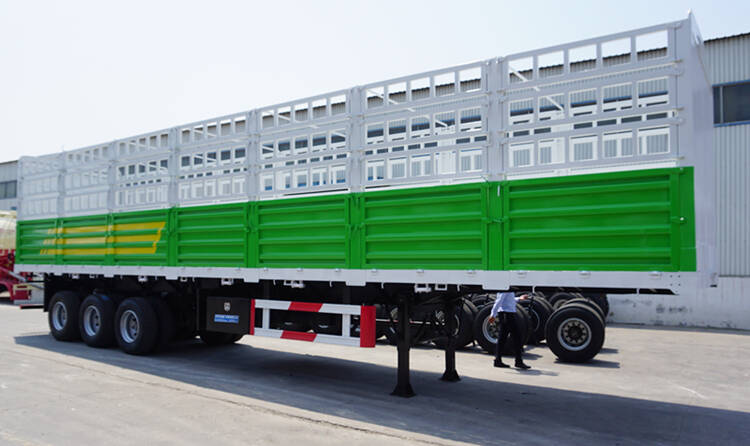

3 Axle Fence Cargo Semi Trailer Price for Sale in Nigeria Lagos

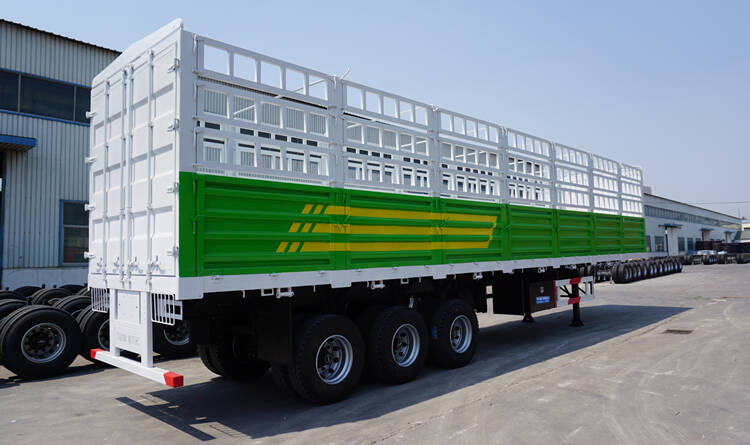

3 Axle Fence Cargo Semi Trailer Price for Sale in Nigeria Lagos

Specification of fence semi trailer for sale:

Dimension(mm): 13000x2600x3550mm

Trailer Sides: 2000mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Advantages of cargo semi trailer:

1. Sinotruk Nigeria adopts high strength steel material to manufacture the fence cargo semi trailer, it can make the trailer have a higher loading capacity and a longer service life.

2. The semi trailer floor is checker plate, this will keep the bulk cargo more stable, like the bags, or long stuff.

3. To make sure the service life of the semi trailer, all the spare parts Sinotruk Nigeria adopt are world famous brand.

4. Hight quality side wall, make sure the stable and safety of the loads.

5. Fence semi trailer for slae in Tema is cheaper than your local market.

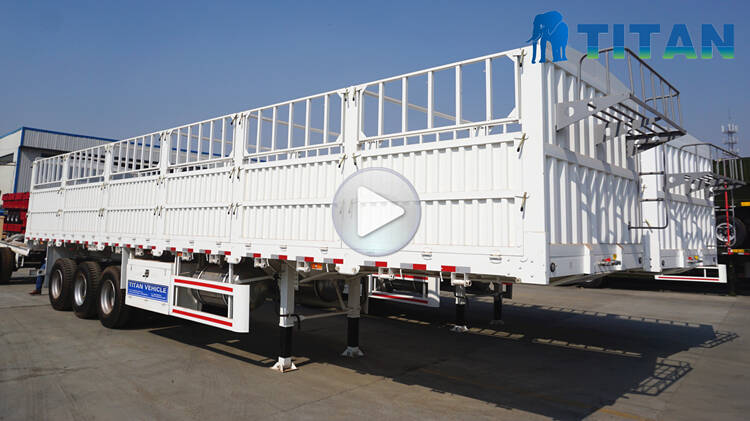

Video of fence semi trailer:

Through this video, you can learn about different types of fence semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry!

We will provide more details, price, catalog, drawing, videos for you!
