Detachable gooseneck lowboy trailer in Nigeria dimensions 15375x3500x2260mm, cargo platform length 7600mm, load 120 tons, cargo platform height 845mm, tire 11.00R20
2 Line 4 Axle 120 Ton Detachable Gooseneck Lowboy Trailer for Sale In Nigeria
2 Line 4 Axle 120 Ton Detachable Gooseneck Lowboy Trailer for Sale In Nigeria

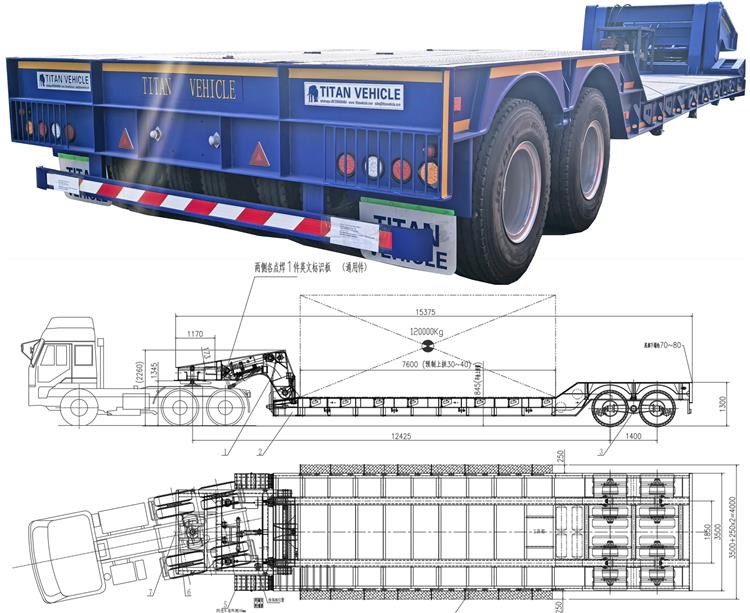

Overall dimension：15375x3500x2260mm
Loading capacity(T): 120T
Axle: 2 line 4 axle
Tire: 16 units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Tare weight: About 9.5-19T
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set

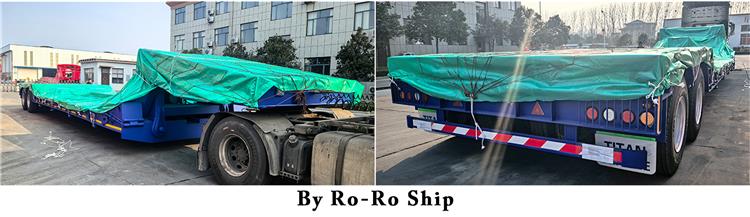

Detachable gooseneck lowboy trailer in Nigeria is usually transported in bulk. After the detachable gooseneck trailer for sale in Nigeria is produced, TITAN will conduct professional load tests to simulate the heavy load in actual operation.
After ensuring that there is no problem with the detachable gooseneck lowboy trailer in Nigeria, a thick layer of wax will be sprayed on the detachable gooseneck trailer for sale in Nigeria, and then the body will be covered with a tarp to reduce the corrosion of the semi-trailer by sea water.
Detachable gooseneck lowboy trailer in nigeria has a low load-bearing surface and strong load-bearing capacity, which is suitable for transporting large machinery and concentrated load-bearing.
The beam of detachable gooseneck trailer for sale in nigeria adopts high-strength steel specially used for q550 large-scale transport vehicles, which has higher strength and toughness, is suitable for concentrated load-bearing, and still has better stability and load-bearing capacity under extremely poor road conditions.
The detachable gooseneck trailer for sale in nigeria has a widened design and stronger load-bearing capacity. The side beams are all welded with three-in-one high-strength strip steel, and the strip width is 140mm. The side beams of detachable gooseneck lowboy trailer in nigeria are made of t700 high-strength plate, which increases strength and prevents waist collapse, and has an arched design to further prevent waist collapse and deformation under concentrated load.
The axle suspension of detachable gooseneck lowboy trailer in nigeria is reinforced, and it becomes a whole with the overall beam, which is stronger.
The floor of detachable gooseneck lowboy trailer in Nigeria uses 5mm thick patterned plate, which is thicker than the 4mm floor on the market. The patterned plate can also increase the friction between the cargo and the floor, making the cargo more stable.
The detachable gooseneck trailer for sale in Nigeria uses powder spray paint, which is more colorful, and the paint will not fall off in 5 years if the vehicle is used normally.
